Dayton

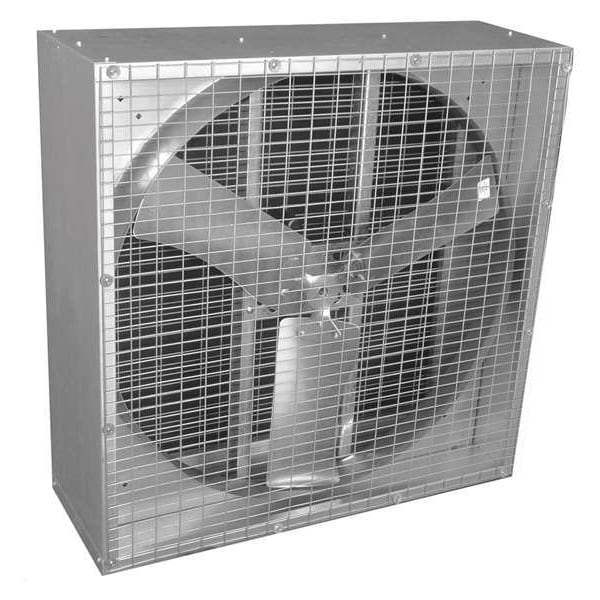

Exhaust Fan, 36 In, D/D

product price: $1,219.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Type Direct Drive, Assembled
  • Propeller Dia. (In.) 36 in
  • CFM @ 0.000-In. SP 11,077
  • HP 1/2 hp
  • Voltage 115/230
See all product information

Product Information

Dimensions

Propeller Dia. (In.) 36 in
Venturi Clearance Dia. (In.) 5/16 in
Dimension B (In.) 14 in
Max. Depth (In.) 14 in
Venturi Depth (In.) 4 in
Shaft Dia. (In.) 5/8 in
Width (In.) 40 7/64 in
Dimension A (In.) 40 1/8 in
Dimension D (In.) 3/8 in
Height (In.) 40 1/8 in
Mesh Size 1 in x 2 in
Overall Width 40 1/8 in
Overall Height 40 1/8 in
Venturi Depth 4 in
Shaft Diameter 5/8 in
Overall Depth 14 in
For Cut-Out Width 40 3/4 in
Blade Diameter 36 in
For Cut-Out Height 40 3/4 in

Details

Item Agricultural Exhaust Fan
Type Direct Drive, Assembled
CFM @ 0.000-In. SP 11,077
HP 1/2 hp
Voltage 115/230
Opening Required H (In.) 40 3/4 in
Opening Required W (In.) 40 3/4 in
Phase 1
CFM/Watt @ 0.100-In. SP 16.4
Frame Material Steel
Motor Type 3-Phase
Max. Ambient Temp. (F) 104 Degrees F
CFM @ 0.100-In. SP 9381
CFM @ 0.050-In. SP 10,217
Mounting Location Vertical
Full Load Amps 5.2/2.6
Agency Compliance Motor is UL recognized for USA & Canada.
Bearing Type Permanently Lubricated Sealed Ball
CFM/Watt @ 0.050-In. SP 18.6
CFM/Watt @ 0.150-In. SP 14.5
Frame Finish Galvanized
Includes Mesh Screen
Motor Enclosure Totally Enclosed Air Over
Fan RPM 850
Hz 60
Propeller Material Galvanized Steel
Motor Insulation Class B
CFM @ 0.150-In. SP 8557
CFM/Watt @ 0.000-In. SP 21.1
Number of Blades 3
Motor RPM 825
Standards C-UL Listed, UL Listed
Maximum Airflow 11,077 cfm
Guard Finish Zinc Plated
Guard Material Steel
Motor Speed 825 RPM
Motor Horsepower 1/2 hp
Exhaust Airflow @ 0.100 in SP 9,381 cfm
Maximum Noise Level 28 sones
Fan Style Box
Exhaust Airflow @ 0.000 in SP 11,077 cfm
Number of Speeds 1
Blade Material Steel
Housing Material Steel
Nameplate Voltage 115/230V AC
Number of Fans 1
Maximum Ambient Operating Temperature 104 Degrees F
Full Load Current 5.2 A
Noise Level @ 0.000 in SP @ 5 ft 28 sones
Includes Motor Yes
Mounting Orientation Vertical
Frequency 60 Hz
Housing Finish Galvanized
Drive Type Direct Drive
For Maximum Wall Thickness 8 in
For Minimum Wall Thickness 6 in
Speed Controllable No
Noise Level @ 0.100 in SP @ 5 ft 26.8 sones
Electrical Connection Hardwired
Includes Dehumidistat No
Guard Type Exhaust
Assembled Assembled
Wattage 620 W
Ventilation Type Exhaust

Description

Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 36 in, Blade Material Steel, Drive Type Direct Drive, Exhaust Airflow @ 0.000 in SP 11,077 cfm, For Cut-Out Height 40 3/4 in, For Cut-Out Width 40 3/4 in, For Maximum Wall Thickness 8 in, For Minimum Wall Thickness 6 in, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Steel, Housing Finish Galvanized, Includes Mesh Screen, Includes Dehumidistat No
