Exhaust Fan, 48In Bl, Galv Steel, 618 RPM

  • Mfr # 1WDC4
  • Zoro # G0309154
product price:
$
1,028.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Type
Standard Duty Belt Drive Less Drive Package
Blade Dia.
48 in
CFM Range
15,009 to 31,442
Exhaust/Supply Fan Motor HP
1/3 to 3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1WDC4
Zoro #
G0309154
UPC #
190735149492
Country of Origin
Mexico
Exhaust/Supply Fan Item
Exhaust Fan
Type
Standard Duty Belt Drive Less Drive Package
CFM Range
15,009 to 31,442
Exhaust/Supply Fan Motor HP
1/3 to 3
Drive Package With Motor Included
No
Requires
Wall Collar and Shutter For New Installation
Wall Collar Stock No.
1WBV5
Number of Blades
6
Item
Exhaust Fan
Mounting Position
Horizontal or Vertical
Frame Material
Steel
Propeller Material
Steel
Drive Package Included
No
Galvanized Wall Shutter No.
1C211
Weatherhood No.
1WBW4
Max. Ambient Temp. (F)
104 Degrees F
Bearing Type
Regreasable Pillow Block
Aluminum Wall Shutter No.
3C312
Wall Housing Item No.
3FKG3
RPM Range
295 to 618
Agency Compliance
UL And C-UL Listed
Intake Guard No.
1WBU7
Fiberglass Wall Shutter No.
5C220
Standards
AMCA Air and Sound, UL/cUL 705
Method of Construction
Stamped
For Minimum Motor Horsepower
1/2 hp
Minimum Airflow
14,214 cfm
For Maximum Motor Speed
618 RPM
Fan Style
Panel
Mounting Orientation
Horizontal or Vertical
Blade Material
Steel
Frame Finish
Zinc-Plated
Ventilation Type
Exhaust
Maximum Ambient Operating Temperature
104 Degrees F
Maximum Inlet Temperature
104 Degrees F
For Minimum Motor Speed
341 RPM
Maximum Airflow
31,442 cfm
Includes Motor
No
Guard Type
None
Blade Finish
Galvanized
For Maximum Motor Horsepower
3 hp
Assembled
Unassembled
Maximum Static Pressure
0.75 in wg

Dimensions

Blade Dia.
48 in
Dimension C (In.)
7 in
Shaft Dia. (In.)
1 1/4 in
Venturi Depth (In.)
7 in
Dimension F (In.)
48 1/2 in
Dimension B (In.)
23 1/2 in
Dimension A (In.)
54 in
Flange Depth (In.)
2 in
Bearing Size (In.)
1 1/4 in
Height (In.)
54 in
Venturi Clearance Dia. (In.)
48 1/2 in
Max. Depth (In.)
23 1/2 in
Width (In.)
54 in
Dimension E (In.)
16 1/2 in
Dimension D (In.)
2 in
Overall Width
54 in
Overall Height
54 in
For Cut-Out Height
50 1/2 in
Overall Depth
23 1/2 in
Flange Depth
2 in
Venturi Diameter
48 1/2 in
Overall Diameter
48 in
For Cut-Out Width
50 1/2 in
Venturi Depth
7 in
Shaft Diameter
1 1/4 in
For Cut-Out Diameter
50 1/2 in
Flange Width
54 in
Bearing Size
1 1/4 in
Blade Diameter
48 in
Manufacturer Warranty Length
1 yr

Description

Exhaust Fan, Assembled Unassembled, Blade Diameter 48 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 3 hp, For Maximum Motor Speed 618 RPM, For Minimum Motor Horsepower 1/2 hp, For Minimum Motor Speed 341 RPM, Maximum Airflow 31,442 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 14,214 cfm, For Cut-Out Height 50 1/2 in, For Cut-Out Width 50 1/2 in, For Cut-Out Diameter 50 1/2 in, Guard Type None, Method of Construction Stamped, Number of Blades 6

Ratings & reviews

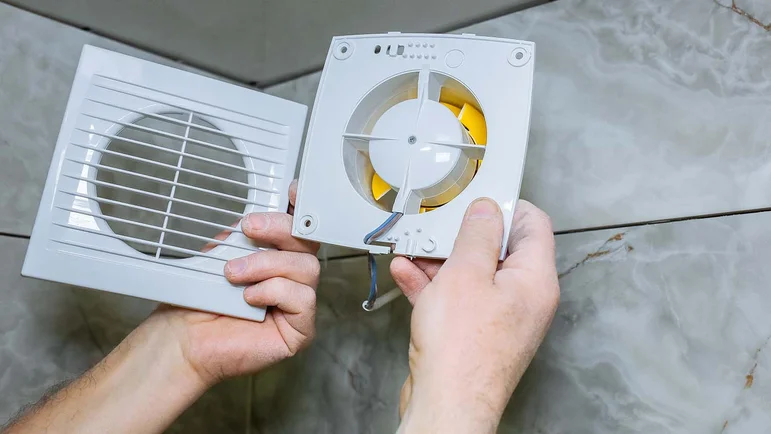

Related guides
