  9. Exhaust Fan, 48In, Slantwall, Belt Drive

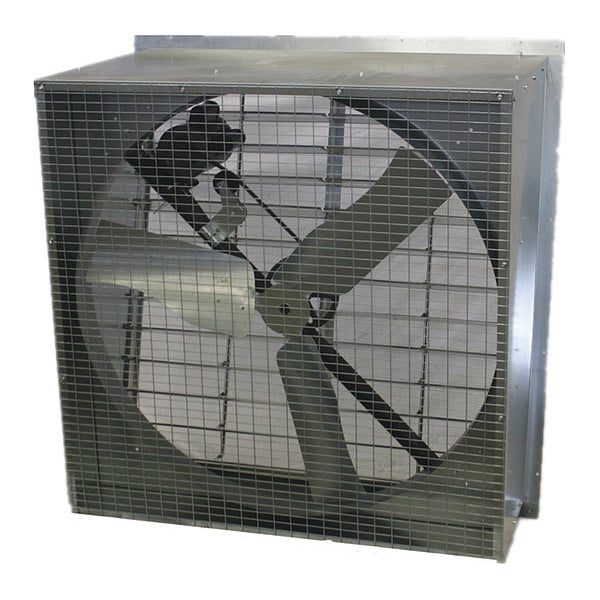

Dayton Exhaust Fan, 48In, Slantwall, Belt Drive 44YU14 - main

Exhaust Fan, 48In, Slantwall, Belt Drive

  • Mfr # 44YU14

  • Zoro # G1840100

product price: $1,486.99
/ea
Item requires special delivery charges. A $170.00 per item surcharge will be applied.

Key Features

Type
Slant-Wall, Belt-Drive
Dimension AA (In.)
51 1/2 in
Hz
60
Agency Compliance
Motor is UL recognized for USA & Canada.
Venturi Clearance Dia. (In.)
5/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
44YU14
Zoro #
G1840100
UPC #
190735299845
Country of Origin
United States

Dimensions

Dimension AA (In.)
51 1/2 in
Venturi Clearance Dia. (In.)
5/16 in
Dimension C (In.)
29 1/4 in
Dimension F (In.)
58 1/8 in
Dimension BB (In.)
53 1/4 in
Venturi Depth (In.)
4 1/2 in
Dimension B (In.)
57 7/8 in
Max. Depth (In.)
28 in
Width (In.)
52 1/8 in
Shaft Dia. (In.)
1 in
Mesh Size
1 in x 2 in
Propeller Dia. (In.)
48 in
Dimension E (In.)
3 in
Dimension D (In.)
15 5/8 in
Flange Width (In.)
2 in
Height (In.)
52 1/4 in
Dimension A (In.)
56 in
Overall Height
52 1/4 in
Overall Width
52 1/8 in
Flange Width
2 in
Venturi Depth
4 1/2 in
Blade Diameter
48 in
Overall Depth
28 in
For Maximum Wall Thickness
8 in
For Minimum Wall Thickness
6 in
For Cut-Out Height
55 1/2 in
Shaft Diameter
1 in
For Cut-Out Width
52 7/8 in

Details

Type
Slant-Wall, Belt-Drive
Hz
60
Agency Compliance
Motor is UL recognized for USA & Canada.
CFM @ 0.100-In. SP
18,900
CFM @ 0.000-In. SP
21,100
Fan RPM
613
Voltage
115/230
Frame Finish
Galvanized
Bearing Type
Permanently Lubricated Sealed Ball
Mounting Location
Wall
CFM/Watt @ 0.150-In. SP
15.8
Motor Enclosure
Totally Enclosed Air Over
Max. Ambient Temp. (F)
104 Degrees F
CFM @ 0.050-In. SP
20,100
Motor Type
3-Phase
Motor Insulation
Class B
HP
1 hp
Includes
Mesh Screen
Number of Blades
3
Opening Required H (In.)
55 1/2 in
CFM @ 0.150-In. SP
17,700
Motor RPM
1725
Propeller Material
Galvanized Steel
CFM/Watt @ 0.050-In. SP
18.9
Opening Required W (In.)
52 7/8 in
CFM/Watt @ 0.000-In. SP
20.4
CFM/Watt @ 0.100-In. SP
17.3
Full Load Amps
8.6/4.3
Item
Agricultural Exhaust Fan
Phase
1
Frame Material
Steel
Standards
C-UL Listed, UL Listed
Motor Horsepower
1 hp
Housing Material
Steel
Guard Finish
Zinc Plated
Noise Level @ 0.000 in SP @ 5 ft
31.2 sones
Number of Fans
1
Speed Controllable
No
Noise Level @ 0.100 in SP @ 5 ft
28.6 sones
Blade Material
Steel
Number of Speeds
1
Maximum Airflow
21,100 cfm
Guard Type
Exhaust
Includes Motor
Yes
Nameplate Voltage
115/230V AC
Drive Type
Belt Drive
Exhaust Airflow @ 0.100 in SP
18,900 cfm
Includes Dehumidistat
No
Maximum Ambient Operating Temperature
104 Degrees F
Electrical Connection
Hardwired
Frequency
60 Hz
Wattage
1,120 W
Assembled
Assembled
Motor Speed
1,725 RPM
Housing Finish
Galvanized
Maximum Noise Level
31.2 sones
Mounting Orientation
Vertical
Full Load Current
8.6 A
Exhaust Airflow @ 0.000 in SP
21,100 cfm
Guard Material
Steel
Ventilation Type
Exhaust
Fan Style
Slant-Wall

Description

Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 48 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 21,100 cfm, For Cut-Out Height 55 1/2 in, For Cut-Out Width 52 7/8 in, For Maximum Wall Thickness 8 in, For Minimum Wall Thickness 6 in, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Steel, Housing Finish Galvanized, Includes Mesh Screen, Includes Dehumidistat No
