  6. Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,725 Nameplate RPM

This item is Discontinued.

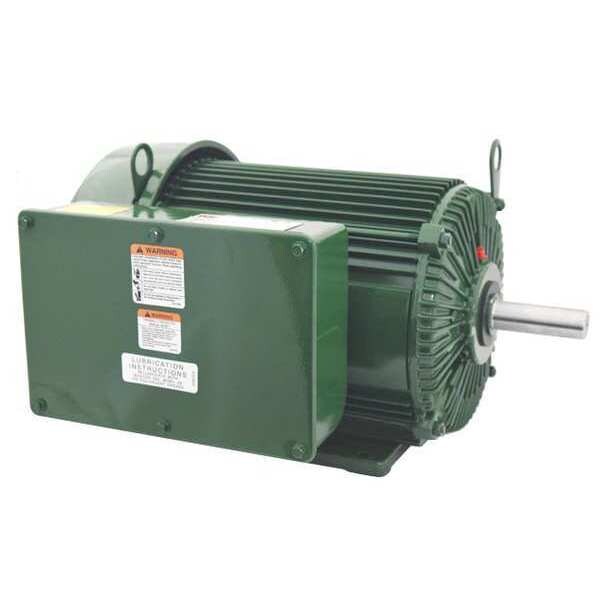

Dayton Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,725 Nameplate RPM 6K883

Extra High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,725 Nameplate RPM (Discontinued)

  • Mfr # 6K883
  • Zoro # G1854478
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6K883
Zoro #
G1854478
UPC #
190735366653
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Length Less Shaft
16 3/4 in
Overall Length
20 1/8 in
Shaft Length
3 3/8 in

Details

Item
Extra High Torque Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
5
RPM Range
1,701-1,800
Voltage
230V AC
Frame
215TZ
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
Extra High Torque
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Max. Ambient Temperature
40 Degrees C
Capacitor Required
Included
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Frame Material
Rolled steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Hz
60 Hz
Motor Bearings
Ball
Finish
Green
Full Load Amps
29.0 A
Duty
Continuous
Item - Farm Duty Motors
Extra High Torque Farm Duty Motor
Ins. Class
F
Nominal Efficiency
79.9 %
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
No. of Speeds
1

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 29.0 A, 215TZ Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Green
