  6. Floor Drill Press, Belt Drive, 1 1/2 hp, 120V AC V, 20 in Swing, 12 Speed

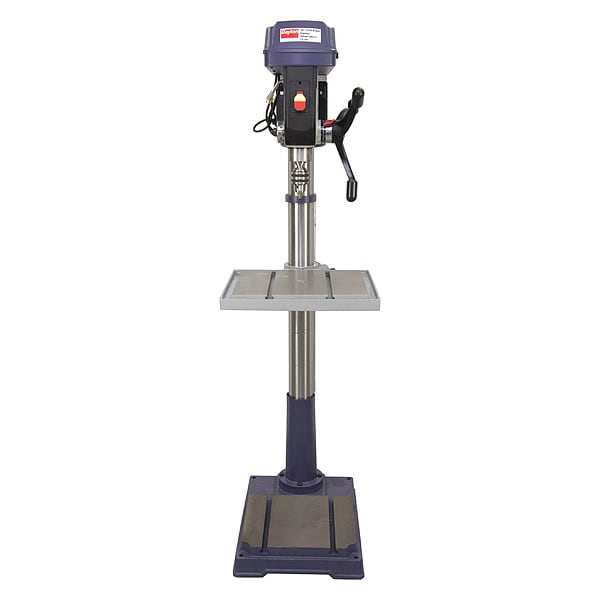

Dayton Floor Drill Press, Belt Drive, 1 1/2 hp, 120V AC V, 20 in Swing, 12 Speed 54ZW28 - main
Shop DAYTON

Floor Drill Press, Belt Drive, 1 1/2 hp, 120V AC V, 20 in Swing, 12 Speed

  • Mfr # 54ZW28

  • Zoro # G3756835

product price:  $1,786.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Drive Type
Belt
Swing
20 in
Voltage
120V AC
Motor HP
1 1/2 hp
Chuck Size
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
54ZW28
Zoro #
G3756835
UPC #
-
Country of Origin
China

Dimensions

Chuck Size
3/4 in
Overall Depth
29 1/2 in
Table Slot Size
14 mm
Overall Height
68 in
Base Size
22-7/8 in x 17 in
Column Dia.
3 5/8 in
Quill Dia.
2 7/16 in
Overall Width
18 1/2 in
Column Diameter
3 5/8 in
Maximum Spindle-to-Base Height
43 3/8 in
Maximum Spindle-to-Table Height
25 in
Maximum Overall Height
68 in
Quill Diameter
2 7/16 in
Base Height
4 in
Base Length
17 in
Table Width
16 1/2 in
Table Length
18 1/2 in

Details

Item
Floor Drill Press
Drive Type
Belt
Swing
20 in
Voltage
120V AC
Motor HP
1 1/2 hp
Number of Speeds
12
Capacity Steel
3/4 in
Spindle Speed
180 to 2940 rpm
Corded/Cordless
Corded
Hz
60
Phase
Single-Phase
Max. Spindle To Base
43 11/32 in
Includes
Chuck Key Holder, Chuck with Key, Depth Stop Gauge, V-Belts, Worklight
Power Down Feed Included
No
Application
General Purpose Drill Press
Tilting Angle
45 Degrees
Amps AC
13.0/6.5
Table Work Surface
18-1/2 in x 16-1/2 in
Spindle to Table
25 in
Spindle Taper
3MT
Capacity Cast Iron
1 in
Spindle Travel
4 3/4 in
Drilling Capacity Wood
Not Specified
Number of T-Slots
2
Table Tilt
45 Degrees
Spindle-to-Column Distance
10 in
Table Shape
Rectangular
Radial Arm
No
Drilling Capacity in Steel
1 in
Drill Press Application
Boring, Countersinking, Drilling, Reaming
Speed Range
240 to 2400 RPM
Drill Press Type
Floor Stand
Maximum Spindle Speed
2,400 RPM
Speed Control
Fixed
Horsepower
1 1/2 hp
Power Source
Corded
Chuck Style
Keyed
Number of Pieces
5
Current
11 A
Primary Material Application
Metal, Wood
Table Slot
Yes
Speed Adjustment
Step Pulley
Coolant System
No
Chuck Capacity
3/4 in
Minimum Spindle Speed
240 RPM
Guard Included
No
Number of Spindle Speeds
12
Standards
ETL Certified USA and Canada

Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 hp, Voltage 120V AC, Spindle Taper 3MT, Number of Speeds 12, Chuck Size 3/4 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 2 7/16 in, Drilling Capacity in Steel 1 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
