  11. Floor Drill Press, Belt Drive, 1 hp, 240V AC V, 17 in Swing, 16 Speed

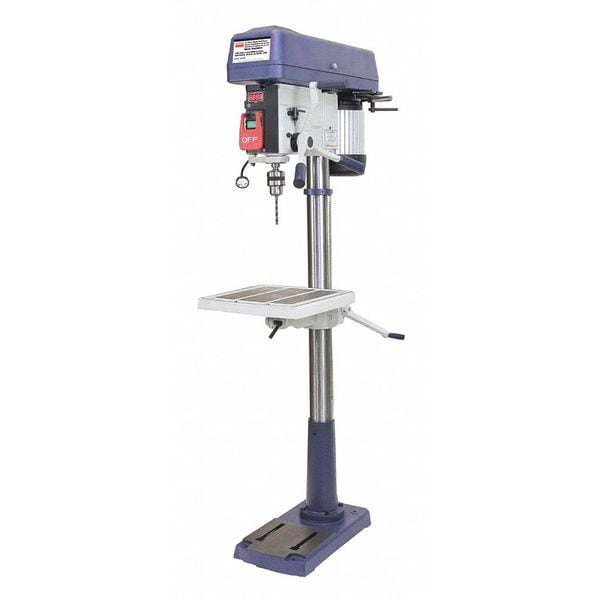

Dayton Floor Drill Press, Belt Drive, 1 hp, 240V AC V, 17 in Swing, 16 Speed 55MJ87 - main

Floor Drill Press, Belt Drive, 1 hp, 240V AC V, 17 in Swing, 16 Speed

  • Mfr # 55MJ87

  • Zoro # G7593136

product price: $1,714.99
/ea
Item requires special delivery charges. A $145.00 per item surcharge will be applied.

Key Features

Drive Type
Belt
Swing
17 in
Voltage
240V AC
Motor HP
1 hp
Chuck Size
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
55MJ87
Zoro #
G7593136
UPC #
-
Country of Origin
China

Dimensions

Chuck Size
5/8 in
Overall Depth
27 in
Overall Height
68 in
Column Dia.
3 5/32 in
Quill Dia.
2 in
Base Size
11 in x 20 in
Overall Width
17 in
Table Slot Size
14 mm
Column Diameter
3 3/16 in
Quill Diameter
2 in
Table Width
14 1/4 in
Maximum Spindle-to-Table Height
29 in
Maximum Spindle-to-Base Height
48 in
Maximum Overall Height
64 in
Table Length
14 1/4 in
Base Height
4 in
Base Length
20 in

Details

Item
Floor Drill Press
Drive Type
Belt
Swing
17 in
Voltage
240V AC
Motor HP
1 hp
Number of Speeds
16
Capacity Steel
1/2 in
Spindle Speed
138 to 3476 rpm
Power Down Feed Included
No
Spindle to Table
25 in
Spindle Taper
2MT
Table Work Surface
14-1/4 in x 14-1/4 in
Amps AC
5.0
Corded/Cordless
Corded
Tilting Angle
45 Degrees
Includes
Chuck with Key, Depth Stop Gauge, Horizontal Quill Feed Handle, Led Readout for Spindle Speeds, LED Working Light, Manual Spindle Reversing Switch for Tapping, V-Belts
Spindle Travel
5 in
Hz
60
Capacity Cast Iron
5/8 in
Phase
Three-Phase
Max. Spindle To Base
45 in
Application
General Purpose Drill Press
Number of T-Slots
2
Table Shape
Square
Number of Pieces
6
Drilling Capacity in Steel
1/2 in
Minimum Spindle Speed
138 RPM
Number of Spindle Speeds
16
Guard Included
No
Speed Control
Fixed
Primary Material Application
Metal, Wood
Chuck Style
Keyed
Coolant System
No
Drill Press Application
Boring, Countersinking, Drilling, Reaming, Tapping
Power Source
Corded
Speed Range
138 to 3,476 RPM
Speed Adjustment
Step Pulley
Table Tilt
45 Degrees
Radial Arm
No
Maximum Spindle Speed
3,476 RPM
Spindle-to-Column Distance
8 1/2
Horsepower
1 1/2 hp
Chuck Capacity
5/8 in
Drill Press Type
Floor Stand
Table Slot
Yes
Current
5 A
Standards
ETL Certified USA and Canada

Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 17 in, Spindle-to-Column Distance 8 1/2, Horsepower 1 1/2 hp, Voltage 240V AC, Spindle Taper 2MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 2 in
