Shop DAYTON

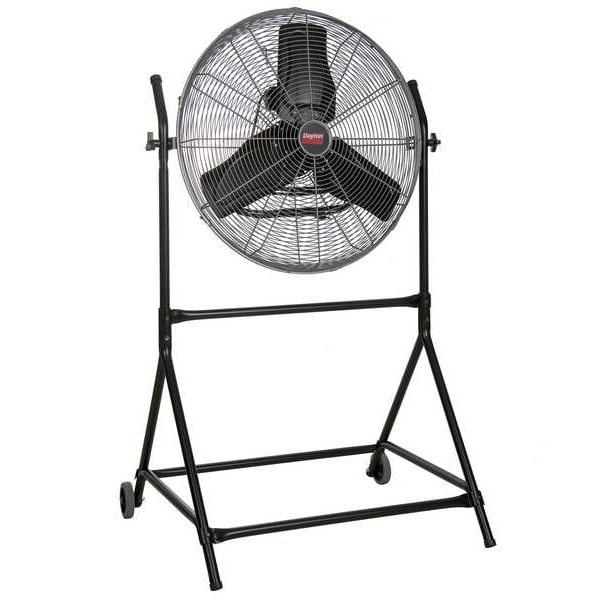

Floor Fan, Floor Mount, 24 in Blade Dia, 120V, 4,200/4,550/4,950 cfm, Non-Oscillating

  • Mfr # 61LD83

  • Zoro # G404245998

product price:  $191.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
3
Voltage
120V
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
61LD83
Zoro #
G404245998
UPC #
-
Country of Origin
China

Dimensions

Blade Diameter
24 in
Fan Cord Length
9 ft
Max. Depth
29 in
Wheel Dia.
4 in
Depth
29 in
Height
52 in
Width
34 in
Height Adjustment
Fixed
Shaft Dia.
1/2 in

Details

Oscillation
Non-Oscillating
Number of Speeds
3
Voltage
120V
Motor HP
1/4 hp
Air Flow
4,200/4,550/4,950 cfm
Blade Material
Aluminum
Fan Power Source
Plug-In
Sound Level
72 dB
Item
Floor Fan
Motor RPM
1,500/1300/1,100 RPM
Number of Conductors
3
RPM
1,100 RPM, 1,300 RPM, 1,500 RPM
Guard Material
Steel
NEMA Plug Configuration
5-15P
Fan Housing Material
Steel
Electrical Connection - Fans
Terminals
Housing Finish
Painted
Housing Material
Steel
Includes Remote Control
No
Fan Shape
Basket
Fan Mounting Location
Floor
Bearing Type
Ball
Mobile/Stationary
Mobile
Amps
2.7/2.3/2.1 A
Environmental Applications
Office
Head Tilt Adjustment
360 Degrees
Wheeled Base
Stationary
Includes
4 in Diameter Wheels, Cart, Tilt Kit
Features
Open Air Over
Number of Blades
3
Hz
60 Hz
Standards
cULus Listed E19455, OSHA Compliant Wire Guards
Watts
240/270/310 W
Color
Silver
Includes Batteries
No
Wheel Material
Plastic
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Drive Type
Direct Drive
Thermal Protection
Automatic Reset
Guard Color
Silver
High-Visibility
No
Number of Wheels
2
Assembly Required
Yes
Phase
Single
Max. Ambient Temp.
104 Degrees F
Corrosion-Resistant
Yes
Motor Type
Permanent Split Capacitor
Airflow
4,200 cfm, 4,550 cfm, 4,950 cfm
Motor Enclosure
Open Air Over
Environment Rating
Dry
Wire Guard Finish
Powder Coated
Removable Base
Permanently Lubricated
For Location
Bedroom, Kitchen, Living Room
Motor Insulation
B
Bearing Protection
Sealed

Description

Mobile Floor Fan, Overall Style - Fans Mobile, Fan Mounting Location Floor, Number of Speeds 3, Non-Oscillating, Fan Cord Length 9 ft, Fan Power Source Plug-In, 240/270/310 W Watts, 1500/1300/1100 RPM RPM, Number of Blades 3, 2.7/2.3/2.1 A Amps, Height 52 in, Width 34 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Silver, cULus Listed E19455, OSHA Compliant Wire Guards, 4 in Diameter Wheels, Cart, Tilt Kit
