  9. Flowmeter, Mechanical, 32 GPM, 3/4 In FNPT
Shop All Flowmeters
Dayton

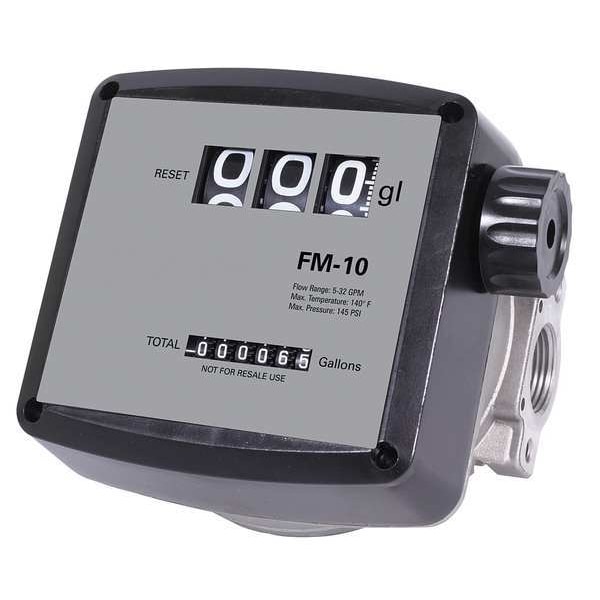

Flowmeter, Mechanical, 32 GPM, 3/4 In FNPT

product price: $232.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Mechanical
  • Housing Material Aluminum
  • For Pipe Size 3/4 in
  • Flow Material Biodiesel, Diesel, Low to Medium Viscosity Oils
  • Connection Size 3/4 in
See all product information

Product Information

  • Brand Dayton
  • MFR # 12F736
  • Zoro # G4962964
  • UPC #
    190735114766
  • Country of Origin India
  • Category Flowmeters

Dimensions

For Pipe Size 3/4 in
Connection Size 3/4 in
Connection Size (In.) 3/4 FNPT
Length (In.) 7"
Width (In.) 6"
Manufacturers Warranty Length 1 yr
Width 6 in
Length 7 in
Height (In.) 5-1/8
Height 5 1/8 in
Manufacturer Warranty Length 1 yr
Overall Height 5.1 in
Overall Length 7 in
Overall Width 6 in

Details

Item Mechanical Flowmeter
Type Mechanical
Housing Material Aluminum
Flow Material Biodiesel, Diesel, Low to Medium Viscosity Oils
Connection Type FNPT
Max. Pressure 145 psi
Wetted Materials Aluminum, Buthil Teraphathalate, Nitirle Rubber
Max. Viscosity 9,400 SUS
Flow Range 5 to 32 gpm
Fitting 3/4 in FNPT
Fluid Temp. Range -10 Degrees to 140 Degrees F
Temp. 140 Degrees F
GPM Max. 32 gpm
Display Mechanical Register with Large Easy-to-read Numbers
Chamber Material Buthil Tereftalat
Max. Pressure (PSI) 145
Seal Material Buna-N
Flow Range (GPM) 5 to 32
Resetable Cumulative Totalizer 99.9 gal in 1/10 gal Increments
Master Totalizer 99,999.9 gal
Flow Range (LPM) 20 to 120
Accuracy (%) +/-1
Thread 3/4 in FNPT
Pressure Drop - 100% Flow (PSI) 3.0 psi
Max. Viscosity (SSU) 9400
Max. Temp. (F) 140
Application For use with Diesel , Bio Diesel & light oils in gravity feed applications or use with Electric Fuel Pumps
Display Type Mechanical
Product Type Mechanical Flowmeter
Flow Rate - Maximum 32 gpm
Flow Rate - Minimum 5 gpm
Compatible Flow Material Diesel, Oils
Operating Pressure - Maximum 145 psi
Media Temperature - Maximum 140 Degrees F
Media Temperature - Minimum -10 Degrees F
Accuracy +/-1%
Viscosity - Maximum 9,400 SUS
Wetted Material Aluminum, PBT, Buna-N

Description

Mechanical Flowmeter, Product Type Mechanical Flowmeter, Accuracy +/-1 Percent, Connection Size 3/4 in, Connection Type FNPT, Compatible Flow Material Diesel, Oils, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum -10 Degrees F, Viscosity - Maximum 9,400 SUS, Housing Material Aluminum, Seal Material Buna-N, Wetted Material Aluminum, PBT, Buna-N, Display Type Mechanical, Flow Rate - Maximum 32 gpm, Flow Rate - Minimum 5 gpm, Operating Pressure - Maximum 145 psi
