Shop All Trolleys
Dayton

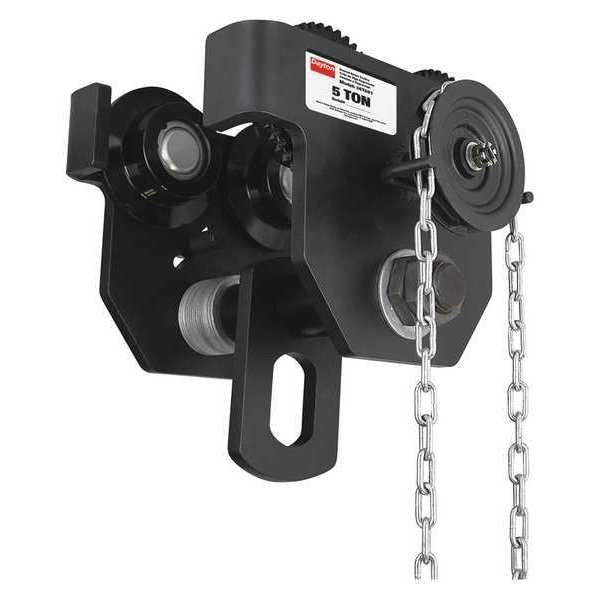

Geared Trolley, 10,000 lb.

product price: $989.99
/ea
Item requires special delivery charges. A $70.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Load Capacity 10,000 lb
  • Fits Beam Flange W 4-1/2 in to 8 in
  • Fits Beam Height 4-51/64 in
  • Min. Radius Curve 63 in
  • Trolley Wheel Dia. 3 55/64 in
See all product information

Product Information

  • Brand Dayton
  • MFR # OZ5GBT
  • Zoro # G6178173
  • UPC #
    190735897164
  • Country of Origin China
  • Category Trolleys

Dimensions

Fits Beam Height 4-51/64 in
Min. Radius Curve 63 in
Trolley Wheel Dia. 3 55/64 in
Minimum Radius Curve 5 1/4 in
For Minimum Beam Height 4 13/16 in
For Max. Beam Flange Width 8 in
For Min. Beam Flange Width 3 15/32 in
Trolley Wheel Diameter 6 3/10 in
Mfr. Warranty Length 5 yr

Details

Trolley Item Geared Trolley
Load Capacity 10,000 lb
Fits Beam Flange W 4-1/2 in to 8 in
Standards ASME B30.11, ASME B30.16, CE
Wheel Material Steel
Head Room To Bail 9 3/32 in
Item Geared Trolley
Trolley Frame Material Steel
For Beam Shape Flat, Tapered
Headroom to Mounting Point 9 3/32 in
Trolley Type Geared
Trolley Wheel Material Steel
Maximum Load Capacity 10,000 lb
Headroom to Connecting Shaft 2 9/32 in
Material Steel

Description

Geared Trolley, Trolley Type Geared, Maximum Load Capacity 10,000 lb, Trolley Frame Material Steel, For Beam Shape Flat, Tapered, For Minimum Beam Flange Width 3 15/32 in, For Maximum Beam Flange Width 8 in, Headroom to Connecting Shaft 2 9/32 in, Headroom to Mounting Point 9 3/32 in, For Minimum Beam Height 4 13/16 in, For Maximum Beam Height Not Applicable, Includes Not Applicable, Minimum Radius Curve 5 1/4 in, Trolley Wheel Diameter 6 3/10 in, Trolley Wheel Material Steel
