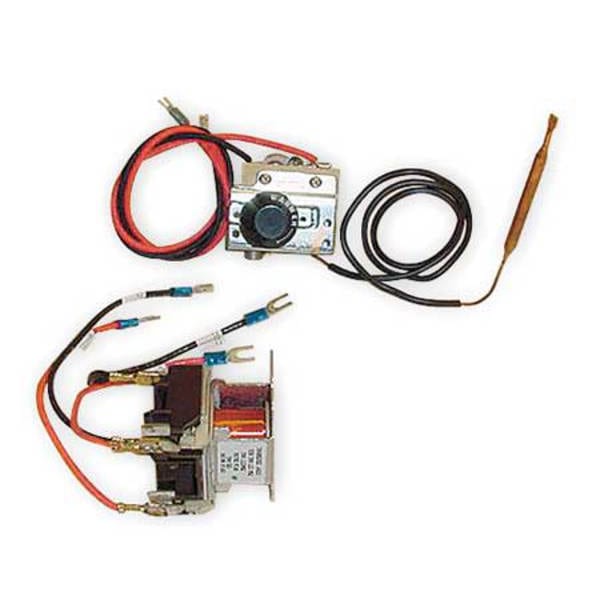

Dayton Heat Recovery Thermostat, SPST 2YU90 - main

Heat Recovery Thermostat, SPST

  • Mfr # 2YU90

  • Zoro # G0851812

product price: $101.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
Unit Mounted
Switch Type
SPST
Phase
1
Amps AC
25
Fits KW
All Except 5KW; 3-Phase
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2YU90
Zoro #
G0851812
UPC #
190735240908
Country of Origin
Mexico

Dimensions

Overall Height
2 1/8 in
Overall Width
1 1/16 in
Overall Depth
1 1/16 in
Overall Dimensions - H x W x D
2-2/16 in x 1-1/16 in x 1-1/16 in

Details

Mounting Type
Unit Mounted
Switch Type
SPST
Phase
1
Amps AC
25
Fits KW
All Except 5KW; 3-Phase
Hz
60
Includes
Mounting Hardware
For Use With
All Dayton(R) Unit Heaters Except 2YU58, 2YU60, 2YU61, 2YU64, 4TDH6, 4TDH7, 4TDH8, 4TDH9, 4TDJ1, 4TDJ2
Item
Electric Wall & Ceiling Heater Thermostat
Voltage Range
24 to 277
Temp. Range
60 Degrees to 120 Degrees F
Standards
UL Listed
Thermostat Control Type
Mechanical Selector Dial
Programming Capability
Not Programmable
Thermostat Control Range
60 Degrees to 120 Degrees F
Number of Poles
1
Thermostat Control Voltage
24 to 277V AC
Voltage
24 to 277V AC
Thermostat Control Amperage
25 A
Max. Operating Temp.
120 Degrees F
Contact Rating
22A @ 120 to 277V AC
Housing Color
Black
Maximum Operating Temperature
120 Degrees F
Compatible Manufacturer Model Number
804T09, 804T10, 804T11, 804T18
Fits kW
All Except 5KW; 3-Phase
Type
Unit Mounted, Field Installed, Internal Heat Recovery with Relay, 24V Coil, SP Normally Open

Description

Electric Wall & Ceiling Heater Thermostat, 24 to 277V AC, 1 1/16 in Overall Depth, 2 1/8 in Overall Height, 1 1/16 in Overall Width, Compatible Grainger Part Number 804T09, 804T10, 804T11, 804T18, Compatible Manufacturer Model Number 804T09, 804T10, 804T11, 804T18, Number of Poles 1, 24 to 277V AC Thermostat Control Voltage, 25 A, Contact Rating 22A @ 120 to 277V AC, Housing Color Black, Mounting Hardware, Mounting Type Unit Mount, Programming Capability Not Programmable, SPST
