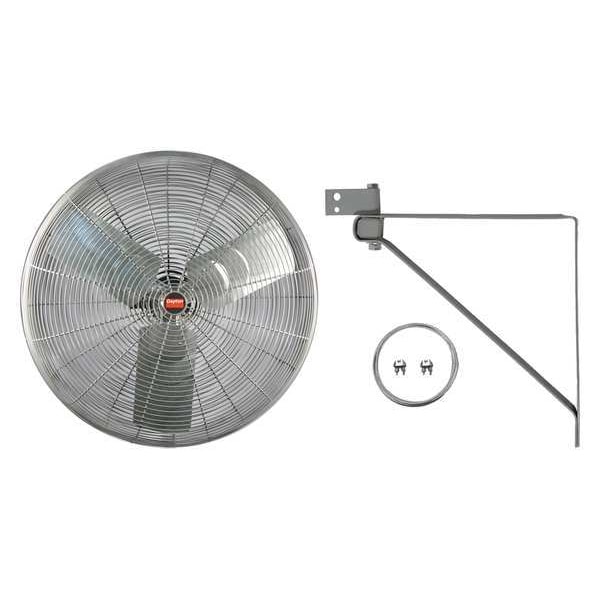

High Ambient Air Circulator, Wall Mount, 30 in Blade Dia, 115V, 8,900 cfm, Non-Oscillating

  • Mfr # 7DJ39

  • Zoro # G2606532

product price:
$
614.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Blade Diameter
30 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7DJ39
Zoro #
G2606532
UPC #
00194484318178
Country of Origin
China

Dimensions

Blade Diameter
30 in
Width
33 in
Max. Depth
14-1/4"
Outside Dia.
33"
Shaft Dia.
1/2 in
Height
33 in
Depth
14 1/4 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V AC
Phase
1
Motor HP
1/2 hp
Air Flow
8,900 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
75 dBA
Item
Mounted Fan
Air Velocity @ 60 Ft.
117 fpm
Application
High Temp. Spot Cooling
Environmental Applications
Industrial
Fan Mounting Location
Wall
Air Velocity @ 10 Ft.
774 fpm
Mobile/Stationary
Stationary
Number of Blades
3
Bearing Type
Ball
Hz
60 Hz
Motor RPM
1120
Standards
cUL, OSHA, UL
Thermal Protection
Auto
Air Velocity @ 20 Ft.
700 fpm
Max. Ambient Temp.
140 Degrees F
Assembled
Yes
Air Velocity @ 40 Ft.
202 fpm
CFM High
8900
Guard Material
Steel
Fan Style
High Ambient
Wire Guard Finish
Powder Coated
Fan Accessory Style
High Ambient
Housing Material
Steel
Motor Enclosure
Totally Enclosed Air-Over
Includes
Conduit Box, Mounting Bracket, Mounting Hardware
Motor Insulation
B
Watts
350 W
Assembly Required
No
Wheeled Base
Stationary
Fan Housing Material
Steel
Amps
4.9
RPM
1,075 RPM
Material
Steel
Color
Gray
Motor hp
1/2 hp
Airflow
8,900 cfm
Guard Color
Gray

Description

High-Temperature Industrial Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115V AC, 1 Phase, CFM High 8900, Air Velocity @ 20 Ft. 700 fpm, Motor HP 1/2 hp, Motor RPM 1120, Operating Amps 4.9, Fan Mounting Location Wall, Fan Accessory Style High Ambient, Fan RPM 1075, Sound Level 75dBA, Max. Ambient Temp. 140 Degrees F, Hz 60 Hz, Watts 350, Drive Type Direct Drive, Outside Dia. 33 In., Height 33 in, Width 33 in, Max. Depth 14-1/4 In.
