  9. High Visibility High Visibility Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 115V

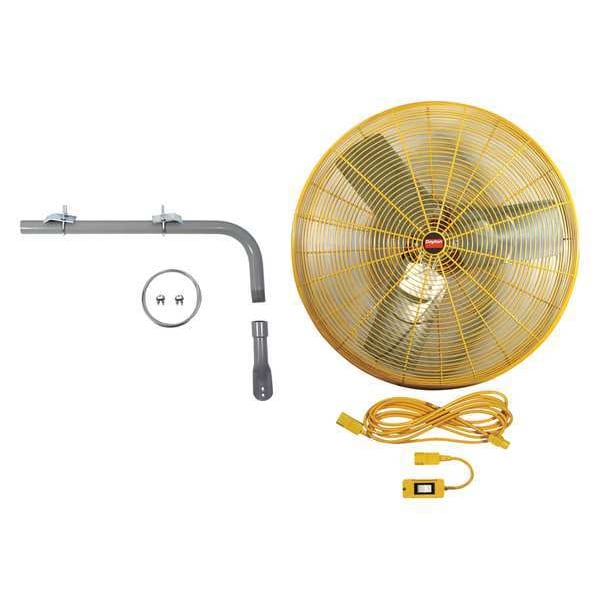

Dayton High Visibility High Visibility Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 115V 7DJ32 - main

High Visibility High Visibility Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 115V

  • Mfr # 7DJ32

  • Zoro # G2606541

product price: $573.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
30 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7DJ32
Zoro #
G2606541
UPC #
00194484318123
Country of Origin
China

Dimensions

Blade Diameter
30 in
Width
33 in
Max. Depth
14-1/4 in
Outside Dia.
33 in
Height
33 in
Shaft Dia.
1/2 in
Fan Cord Length
2 ft
Depth
14 1/4 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/2
Air Flow
8,712/9,375 cfm
Drive Type
Direct Drive
Blade Material
Mill Finish Aluminum
Sound Level
77 dBA
Item
High Visibility Industrial Fan
Thermal Protection
Automatic
Number of Blades
3
Environmental Applications
Industrial
Motor RPM
1,075/750 RPM
Assembled
Yes
Air Velocity @ 60 Ft.
140 fpm
Air Velocity @ 10 Ft.
865/465 fpm
Motor Enclosure
Totally Enclosed Air Over
Air Velocity @ 20 Ft.
615/330 fpm
Hz
60
Max. Ambient Temp.
104 Degrees F
Guard Material
Steel
Housing Material
Steel
Air Velocity @ 40 Ft.
320 fpm
Application
Spot Cooling and People Cooling
Motor Insulation
Class B
Bearing Type
Ball
Mobile/Stationary
Stationary
Standards
UL, cUL, OSHA
Wire Guard Finish
Polyester Powder Coated
CFM High
9375
Fan Mounting Location
Ceiling, IBeam, Pedestal, Wall
Includes
13 ft. Extension Cord, 3 Position Drop Cord Switch, (1) 1ZCP8 I-Beam Mounting Bracket
Fan Style
High Visibility
CFM Low
8712
Fan Accessory Style
High Visibility
Assembly Required
No
RPM
1075/750
Fan Housing Material
Steel
Wheeled Base
Stationary
Amps
3.7/3.12
Material
Steel
Color
Yellow
Motor hp
1/2 hp

Description

Mounted Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 9375, CFM Low 8712, Air Velocity @ 20 Ft. 615/330 fpm, Motor HP 1/2 hp, Motor RPM 1075/600, Operating Amps 3.7/3.12, Fan Mounting Location Post, Fan Accessory Style High Visibility, Fan RPM 1075/750, Sound Level 77 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Drive Type Direct Drive, Outside Dia. 33 In., Height 33 in, Width 33 in, Max. Depth 14-1/4 In., Cord Length 2 ft.
