  13. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing

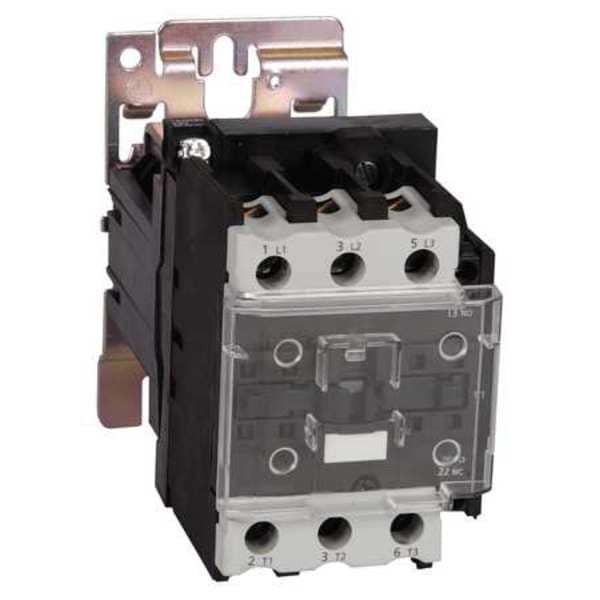

Dayton IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing 6ECD5 - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing

  • Mfr # 6ECD5

  • Zoro # G1132713

product price: $184.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ECD5
Zoro #
G1132713
UPC #
190735362044
Country of Origin
India

Dimensions

Overall Width
2.95 in
Overall Height
2.95 in
Overall Depth
6.73 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
2
Standards
CSA, UL Listed
Enclosure NEMA Rating
No Enclosure
HP @ 1 Phase - 230V
5
HP @ 3 Phase - 575V
30 hp
Reversing
No
Full Load Current - Inductive
32 A
Frequency
50/60 Hz
Horsepower @ Single Phase - 120V AC
3 hp
Horsepower @ Three Phase - 240V AC
10 hp
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
No
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 480V AC
30 hp
Contactor Style
IEC
Horsepower @ Three Phase - 600V AC
30 hp
Full Load Current - Resistive
60 A
Horsepower @ Three Phase - 208V AC
10 hp

Description

The DAYTON - IEC Magnetic Contactor is an industrial tool intended to be used for managing electric power in industrial equipment. It operates with a coil voltage of 24V DC and has an auxiliary contact configuration of 1NO/1NC, which means it includes one normally open (NO) and one normally closed (NC) contact. The contactor can handle full load amps-inductive up to 32 A and full load amps-resistive up to 60 A. This product does not include an enclosure, hence the NEMA Enclosure Rating is listed as "No Enclosure".

Key features of this product include:

Non-Reversing action: This feature suggests that the magnetic contactor is designed to allow current flow primarily in one direction.

  • Auxiliary Contact Form: With its 1NC/1NO form, it provides flexibility for different circuit configurations.
  • Coil Voltage: The product operates at a coil voltage of 24V DC, which may be compatible with certain standard systems.
  • Full Load Amps: Rated for operation with inductive loads up to 32A and resistive loads up to 60A. Suitability depends on specific device requirements.
  • Horsepower Ratings: Horsepower ratings are provided for single phase operations at both 120V AC (3 hp) and 240V AC (5 hp), as well as three-phase operations across multiple voltages such as;208V AC(10hp),480V AC(30hp). Actual performance may vary based on system configuration.
  • Standards Compliance: This product is CSA certified and UL Listed indicating compliance with certain North American safety standards.

    • Restrictions

    WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
