  11. Incandescent Photocontrol, 1,000 W, Blue

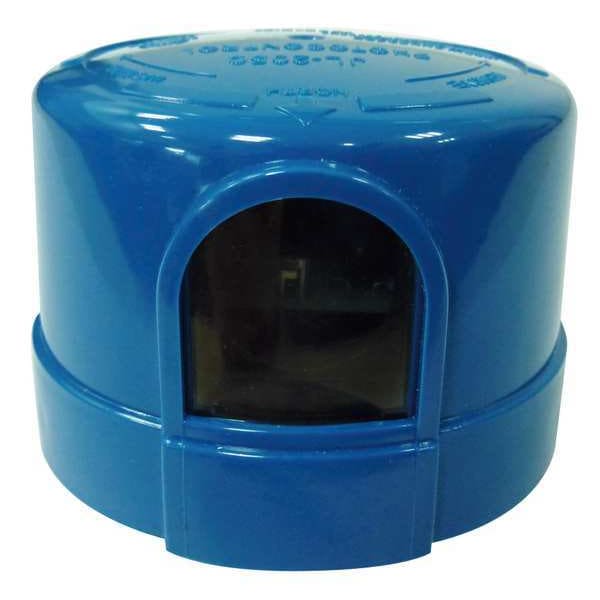

Dayton Incandescent Photocontrol, 1,000 W, Blue 26WA96 - main

Incandescent Photocontrol, 1,000 W, Blue

  • Mfr # 26WA96

  • Zoro # G9087294

product price: $11.19
/ea

Key Features

Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
Housing Material
Polycarbonate
Setting
Dusk to Dawn
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
26WA96
Zoro #
G9087294
UPC #
190735210987
Country of Origin
China

Dimensions

Width
3 3/8 in
Length
3 1/5 in
Manufacturers Warranty Length
3 yr
Depth
2 3/8 in
Overall Height
3.2 in

Details

Item
Photocontrol
Foot Candles On
10.0 to 20.0
Foot Candles Off
30 to 60
Temp. Range
-40 Degrees to 158 Degrees F
Housing Material
Polycarbonate
Setting
Dusk to Dawn
Standards
CETLU
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Enclosure Type
Raintight
Contact Form
SPST
Description/Special Features
Lightning Arrestor with Built in Delay
Mounting Style
Turn Lock
Wattage - Maximum
1,000 W
Compatible Lighting
Incandescent
Incandescent Current - Maximum
8.3 A
Off Illumination - Minimum
30 fc
Operating Temperature - Minimum
-40 Degrees F
On Illumination - Maximum
20 fc
AC Operating Voltage
120-277V AC
Off Illumination - Maximum
60 fc
Body Color
Blue
Operating Temperature - Maximum
158 Degrees F
Ballast Current - Maximum
15 A
Features
160J Surge Arrestor, Built-In Delay
On Illumination - Minimum
10 fc

Description

Photocontrol, Mounting Turn-Lock, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3 A, Max. Ballast Amps 15 A, 10.0 to 20.0 Foot Candles On, 30 to 60 Foot Candles Off, Color Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 3 1/5 in, Width 3 3/8 in, Depth 2 3/8 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards CETLU
