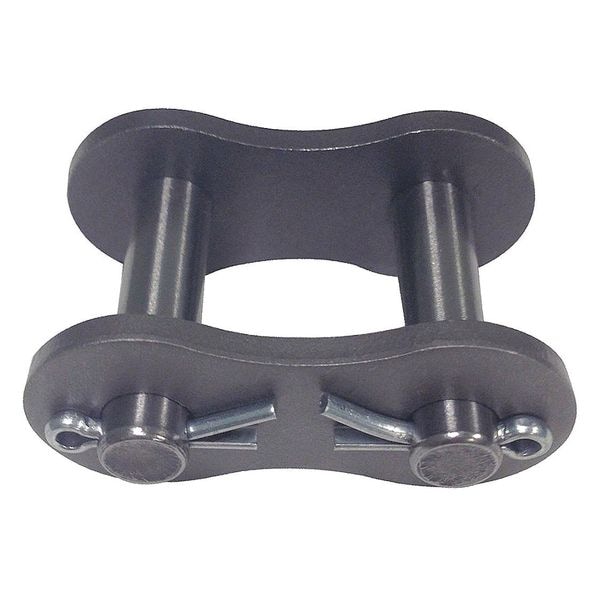

Dayton Ind Link Single Strand Connecting 2YED2 - main

Ind Link Single Strand Connecting

  • Mfr # 2YED2

  • Zoro # G2359935

product price: $2.29
/ea

Key Features

Roller Chain Link Item
Connecting Link
Roller Chain Link Type
Standard Riveted
Industry Chain Size
80
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2YED2
Zoro #
G2359935
UPC #
190735238004
Country of Origin
Multiple

Dimensions

Industry Chain Size
80
Chain Link Overall Width
1.54 in
Chain Roller Dia.
0.625 in
Outside Pin Dia. (In.)
0.312
Roller Link Plate Height
0.95 in
Width Between Roller Link Plates
0.625 in
Pin Length (In.)
1.386
Overall Width (In.)
1.386
Roller Dia. (In.)
0.625
Width Between Roller Link Plates (In.)
0.625
Pin Link Plate Thickness
0.125 in
Pin Link Plate Thickness (In.)
0.125
Hole Dia.
0.314 in
Inside Pin Dia.
0.312 in
Bushing Dia. (In.)
0.440
Pin Length
1.54 in
ANSI Chain Size
80
Chain Size - Sprockets
80
Outside Pin Dia.
0.312 in
Bushing Dia.
0.44 in
Hole Dia. (In.)
0.311
Roller Link Plate Height (In.)
0.935
Roller Diameter
5/8 in
Plate Thickness
0.125 in
Pin Hole Diameter
5/16 in
Chain Overall Width
1 35/64 in
Pin Outside Diameter
5/16 in
Plate Height
61/64 in
Inside Width
5/8 in

Details

Roller Chain Link Item
Connecting Link
Roller Chain Link Type
Standard Riveted
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 in
Number of Strands
1
Breaking Strength (Lb.)
14,500
Temp. Range
10 Degrees to 150 Degrees F
Type
Single Strand Connecting
Max. Allowable Load (Lb.)
3300
Breaking Strength
12,500 lb
Includes
Cotter Pins
Connecting End to Center Line
0.75 in
Item
Connecting Link
Material
Steel
Tensile Strength (Lb.)
14,500
Rivet End to Center Line
0.636 in
Rivet End to Center Line (In.)
0.636
Pitch
1 in
Max. Allowable Load
3,300 lb
Tensile Strength
12,500 lbf
Industrial Chain Pitch
1"
Connecting End to Center Line (In.)
0.750
Chain Construction
Riveted Pin
Chain Number
80
Link Type
Connecting Link
Minimum Operating Temperature
10 Degrees F
Pin Contruction
Riveted Pin
Maximum Operating Temperature
150 Degrees F
Heavy Series
No
Working Load Limit
3,300 lb

Description

Connecting Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 35/64 in, Chain Number 80, Roller Diameter 5/8 in, Pitch 1 in, Link Type Connecting, Number of Strands 1, Heavy Series No, Includes Cotter Pins, Inside Width 5/8 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Contruction Riveted Pin, Pin Hole Diameter 5/16 in, Pin Outside Diameter 5/16 in, Plate Height 61/64 in, Plate Thickness 0.125 in
