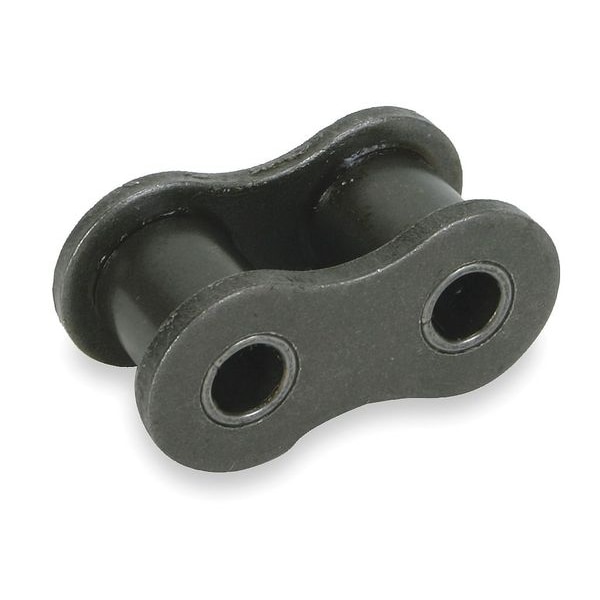

Dayton Ind Link Single Strand Roller 2YEE6 - main

Ind Link Single Strand Roller

  • Mfr # 2YEE6

  • Zoro # G2447374

product price: $8.49
/ea

Key Features

Roller Chain Link Item
Roller Link
Roller Chain Link Type
Standard Riveted
Industry Chain Size
140
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2YEE6
Zoro #
G2447374
UPC #
190735238134
Country of Origin
Multiple

Dimensions

Industry Chain Size
140
Chain Link Overall Width
1.436 in
Chain Roller Dia.
1 in
Width Between Roller Link Plates (In.)
1.000
Chain Size - Sprockets
140
Pin Length
2.49 in
ANSI Chain Size
140
Bushing Dia.
0.673 in
Outside Pin Dia.
0.5 in
Inside Pin Dia.
0.5 in
Roller Link Plate Height
1.614 in
Outside Pin Dia. (In.)
0.218
Pin Length (In.)
2.269
Roller Dia. (In.)
1.000
Pin Link Plate Thickness
0.218 in
Bushing Dia. (In.)
0.310
Hole Dia. (In.)
0.217
Pin Link Plate Thickness (In.)
0.218
Hole Dia.
0.502 in
Roller Link Plate Height (In.)
1.661
Overall Width (In.)
2.269
Width Between Roller Link Plates
1.0 in
Pin Hole Diameter
1/2 in
Plate Thickness
7/32 in
Roller Diameter
1 in
Plate Height
1 39/64 in
Chain Overall Width
1 7/16 in
Pin Outside Diameter
0.5 in
Inside Width
1 in

Details

Roller Chain Link Item
Roller Link
Roller Chain Link Type
Standard Riveted
Chain Link Material
Carbon Steel
Industry Chain Pitch
1 3/4 in
Number of Strands
1
Max. Allowable Load
8,900 lb
Item
Roller Link
Connecting End to Center Line
1.194 in
Breaking Strength (Lb.)
46,000
Type
Single Strand Roller
Tensile Strength (Lb.)
46,000
Breaking Strength
38,280 lb
Pitch
1 3/4 in
Material
Steel
Tensile Strength
38,280 lbf
Industrial Chain Pitch
1-3/4"
Max. Allowable Load (Lb.)
8900
Connecting End to Center Line (In.)
1.194
Temp. Range
10 Degrees to 150 Degrees F
Rivet End to Center Line
1.075 in
Rivet End to Center Line (In.)
1.075
Minimum Operating Temperature
10 Degrees F
Maximum Operating Temperature
150 Degrees F
Chain Construction
Riveted Pin
Heavy Series
No
Working Load Limit
8,900 lb
Chain Number
140
Pin Contruction
Riveted Pin
Link Type
Roller Link

Description

Roller Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 7/16 in, Chain Number 140, Roller Diameter 1 in, Pitch 1 3/4 in, Link Type Adding, Number of Strands 1, Heavy Series No, Inside Width 1 in, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature 10 Degrees F, Pin Contruction Riveted Pin, Pin Hole Diameter 1/2 in, Pin Outside Diameter 0.5 in, Plate Height 1 39/64 in, Plate Thickness 7/32 in, Tensile Strength 38,280 lbf
