  11. Jaw Coupling Insert, L070, Hytrel

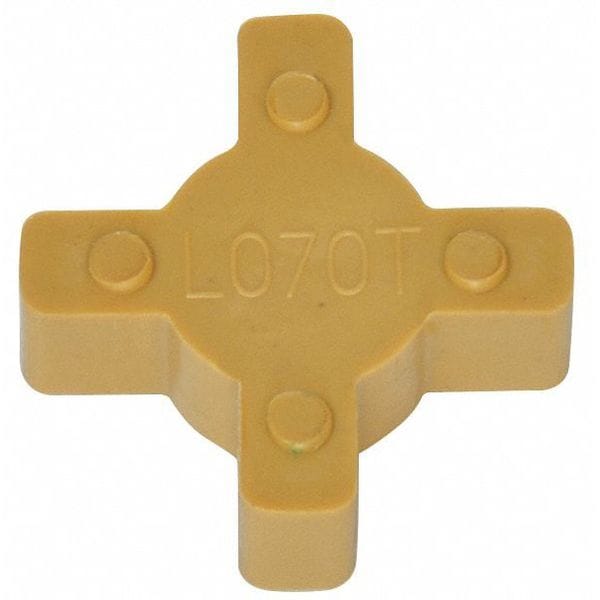

Dayton Jaw Coupling Insert, L070, Hytrel 29HZ16 - main

Jaw Coupling Insert, L070, Hytrel

  • Mfr # 29HZ16

  • Zoro # G6174095

product price: $11.59
/ea

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L070
Material - Spiders
Hytrel
Rated Torque
114 in-lb
Max. RPM
14,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
29HZ16
Zoro #
G6174095
UPC #
190735215395
Country of Origin
China

Dimensions

Size - Jaw Couplings
L070
Length (In.)
0.437 in
Height (In.)
1.339 in
Width (In.)
1.339 in
Shaft Dia. Range (In.)
1/4 to 3/4
Coupling Size
L070
Spider Width
0.44 in
Outside Diameter
1 11/32 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Hytrel
Rated Torque
114 in-lb
Max. RPM
14,000 RPM
HP Rating @ 100 RPM
0.18
Temp. Range
-60 Degrees to 70 Degrees F
Color
Tan
Max. Parallel Misalignment (In.)
0.015 in
HP Rating @ 1200 RPM
2.17
Type
Hytrel Spider
Serviceable Temp. Range (F)
-59.8 Degrees to 69.8 Degrees F
Accommodates
1/2 Degrees Angular and 0.015 in of Parallel Misalignment
HP Rating @ 1800 RPM
3.25
HP Rating @ 3600 RPM
6.51
Max. Angular Misalignment
1.5 Degrees
Item
Hytrel Spider Insert
Torque (In.-Lbs.)
44.1
Application
Close Coupling L-Type
Max. Torque (In.-Lbs.)
114
Coupling Weight (Lb.)
0.015
Maximum Torque
114 in-lb
Axial Motion
0.02 mm
Working Torque
114 in-lb
Durometer Hardness
55D
Spider Material
Hytrel
For Misalignment Type
Angular, Parallel
Parallel Misalignment
0.015 in
Fail Safe
Yes
Maximum Speed
14,000 RPM
For Minimum Hub Bore
1/4 in
Horsepower @ RPM
2.2 hp @ 1200 RPM, 3.3 hp @ 1800 RPM, 6.5 hp @ 3600 RPM
For Maximum Hub Bore
3/4 in
Maximum Operating Temperature
250 Degrees F
System of Measurement
Inch
Compatible Hub Manufacturer Part Number
L070
Spider Type
Solid Center Spider
Zero Backlash
No
Horsepower @ 100 RPM
0.18 hp
Angular Misalignment
0.5 Degrees
Number of Teeth
4
Minimum Operating Temperature
-60 Degrees F
Resistance Properties
Chemical Resistant, Oil Resistant

Description

Hytrel Spider Insert, Coupling Size L070, Outside Diameter 1 11/32 in, System of Measurement Inch, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.18 hp, Spider Material Hytrel, Maximum Torque 114 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 1/4 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L070, Fail Safe Yes, For Maximum Hub Bore 3/4 in
