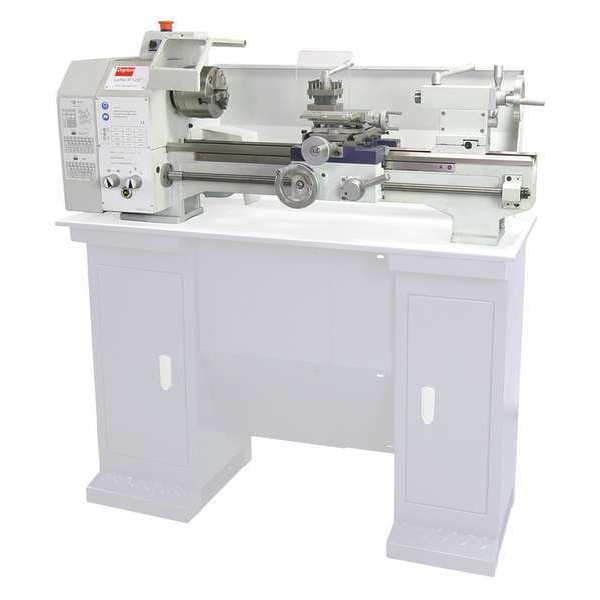

Dayton Lathe, 115V AC, 1 HP, 60 Hz, Single Phase, 19 5/8 in. Distance Between Centers, 48WE43 48WE43 - main

Lathe, 115V AC, 1 HP, 60 Hz, Single Phase, 19 5/8 in. Distance Between Centers, 48WE43

  • Mfr # 48WE43

  • Zoro # G6423700

product price: $4,316.99
/ea
Item requires special delivery charges. A $160.00 per item surcharge will be applied.

Key Features

Primary Application
Metal Turning
Motor HP
1
Phase
Single
Voltage
115V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48WE43
Zoro #
G6423700
UPC #
-
Country of Origin
China

Dimensions

Overall Width
49 in
Bed Width (In.)
5-5/16
Overall Height
19 in
Overall Length
49 in
Bed Width
5 5/16 in
Overall Depth
23 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
1
Phase
Single
Voltage
115V AC
Frequency
60 Hz
Swing Over Bed (In.)
9-3/4
Distance Between Centers
19 5/8 in
Horsepower
1 hp
Distance Between Centers (In.)
21-5/8
Spindle Speed (RPM)
125 to 2000
Cross Feed Rates
0.0007 a 0.019
Number of Threads (In.)
22
Hz
60
Compound Travel (In.)
4-21/64
Longitudinal Feed Rates
0.002 a 0.055
Tailstock Taper
MT2
Thread Range (In.)
1/64 to 5/64
Cross Travel (In.)
4-3/4"
Number of Threads (mm)
19
Spindle Taper
MT-4
Carriage Travel (In.)
2-49/64
Includes
3-Jaw Chucks, 4-Way Tool Post, Charge Gear Kit, MT2 and MT4 Moving Rest, Safety Guard, Steady Rest
Tailstock Travel (In.)
2-1/2
Swing Over Cross Slide (In.)
5-29/32
Spindle Bore (In.)
1-1/64
Number of Spindle Speeds
6
Thread Range (mm)
0.2 to 3.5
Min. Metric Thread
0.2 mm
Application
Metal Turning
Number of Inch Threads
22
Max. Metric Thread
3.5 mm
Number of Metric Threads
19
Swing Over Cross Slide
5 29/32 in
Min. Cross Feed
0.0007 in
Max. Cross Feed
0.0190 in
Max. Spindle Speed
2,000 RPM
Min. Spindle Speed
125 RPM
Swing Over Bed
9 in
Spindle Bore
1 in
Includes Digital Readout
No Digital Readout
Metric Thread - Minimum
0.2 mm
Spindle Speed - Minimum
125 RPM
Includes Collet Closer
No Collet Closer
Cross Feed - Maximum
0.019 in/rev
Metric Thread - Maximum
3.5 mm
Spindle Speed - Maximum
2,000 RPM
Spindle Nose Taper
MT4
Includes Stand
Stand Sold Separately
Cross Feed - Minimum
0.0007 in/rev
Lathe Head Drive
Belt Drive
Includes Taper Attachment
No Taper Attachment

Description

Dayton Metal Turning Lathe (Model 48WE43)

The Dayton Metal Turning Lathe is a durable and precise machine designed for a variety of metalworking tasks. It is powered by a 1 hp motor running on 115V AC single-phase power with spindle speeds from 125 to 2,000 RPM. With a distance between centers of 19 5/8 inches and a swing over the bed of 9 3/4 inches, it is ideal for small to medium-sized metal parts. The lathe features standard MT4 spindle and MT2 tailstock tapers and includes essential accessories for enhanced functionality and safety.

Key Features:

  • Motor: 1 hp, 115V AC single-phase, 60 Hz
  • Spindle speed range: 125 to 2,000 RPM for versatile turning applications
  • Distance between centers: 19 5/8 inches
  • Swing over bed: 9 3/4 inches suitable for small to medium workpieces
  • Spindle taper: MT4; Tailstock taper: MT2 for standard tooling compatibility
  • Bed width: 5 5/16 inches providing stable support
  • Dimensions: 49" L x 49" W x 19" H ensuring a compact footprint
  • Includes 3-jaw chuck, 4-way tool post, charge gear kit
  • Equipped with steady and moving rests (MT2 and MT4 taper attachments)
  • Safety guard included for operator protection This lathe is well-suited for small workshops and industrial users requiring reliable, accurate, and versatile metal turning capabilities.
