  11. Lathe, 115V AC Volts, 1 hp HP, 60 Hz, Single Phase 21 5/8 in Distance Between Centers

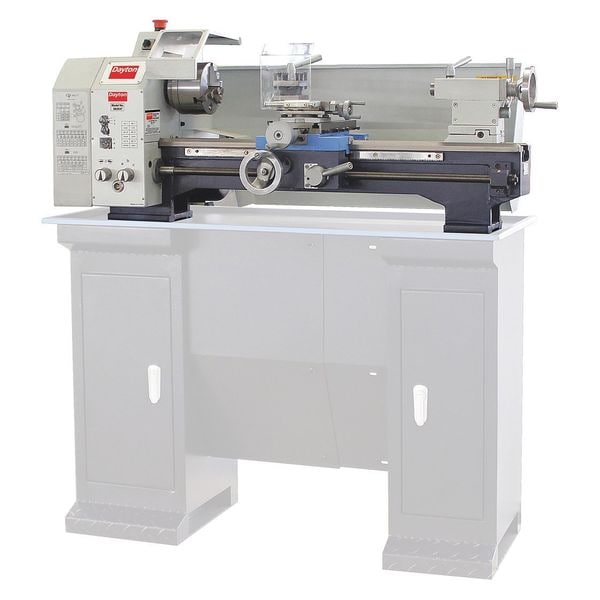

Dayton Lathe, 115V AC Volts, 1 hp HP, 60 Hz, Single Phase 21 5/8 in Distance Between Centers 53UH17 - main

Lathe, 115V AC Volts, 1 hp HP, 60 Hz, Single Phase 21 5/8 in Distance Between Centers

  • Mfr # 53UH17

  • Zoro # G9188816

product price: $4,271.99
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Key Features

Primary Application
Metal Turning
Motor HP
1
Phase
Single
Voltage
115V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
53UH17
Zoro #
G9188816
UPC #
-
Country of Origin
China

Dimensions

Overall Width
50 in
Overall Length
50 in
Bed Width (In.)
3-1/2
Overall Height
19 in
Bed Width
5 1/3 in
Overall Depth
23 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
1
Phase
Single
Voltage
115V AC
Frequency
60 Hz
Swing Over Bed (In.)
9-3/4
Distance Between Centers
21 5/8 in
Horsepower
1 hp
Compound Travel (In.)
4-1/3
Cross Travel (In.)
4-3/4
Includes
(3) Jaw Chucks, 4-Way Tool Post, Change Gear Kit, Lathe Chuck Guard, Splash Guard, Steady Center MT2 and MT4, Tool Post Chip Guard
Carriage Travel (In.)
17
Number of Threads (In.)
21
Distance Between Centers (In.)
21-5/8
Tailstock Taper
MT2
Number of Threads (mm)
21
Swing Over Cross Slide (In.)
4-1/3
Spindle Speed (RPM)
150 to 2400
Thread Range (In.)
8 to 56
Thread Range (mm)
0.2 to 4
Number of Spindle Speeds
6
Longitudinal Feed Rates
0.003 to 0.016
Spindle Bore (In.)
1
Cross Feed Rates
0.008 to 0.016
Features
Powerful, Maintenance Free Motor
Tailstock Travel (In.)
2-1/2
Hz
60
Spindle Taper
MT-4
Max. Spindle Speed
2,400 RPM
Swing Over Cross Slide
4 33/100 in
Max. Metric Thread
4 mm
Spindle Bore
1 in
Application
Metal Turning
Min. Spindle Speed
150 RPM
Number of Metric Threads
21
Min. Cross Feed
0.0080 in
Swing Over Bed
9 3/4 in
Max. Cross Feed
0.0160 in
Min. Threads per Inch
8
Max. Threads per Inch
56
Min. Metric Thread
0.2 mm
Number of Inch Threads
21
Cross Feed - Maximum
0.016 in/rev
Cross Feed - Minimum
0.008 in/rev
Threads per Inch - Minimum
8
Metric Thread - Minimum
0.2 mm
Includes Digital Readout
No Digital Readout
Includes Stand
Stand Sold Separately
Threads per Inch - Maximum
56
Metric Thread - Maximum
4 mm
Lathe Head Drive
Belt Drive
Spindle Speed - Minimum
150 RPM
Includes Collet Closer
No Collet Closer
Includes Taper Attachment
No Taper Attachment
Spindle Speed - Maximum
2,400 RPM
Spindle Nose Taper
MT4

Description

Lathe, Distance Between Centers 21 5/8 in, Voltage 115V AC, Horsepower 1 hp, Min. Spindle Speed 150 RPM, Application Metal Turning, Overall Height 19 in, Overall Length 50 in, Overall Width 50 in, Max. Spindle Speed 2,400 RPM, Tailstock Taper MT2
