  11. Lathe, 460V AC Volts, 2 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers

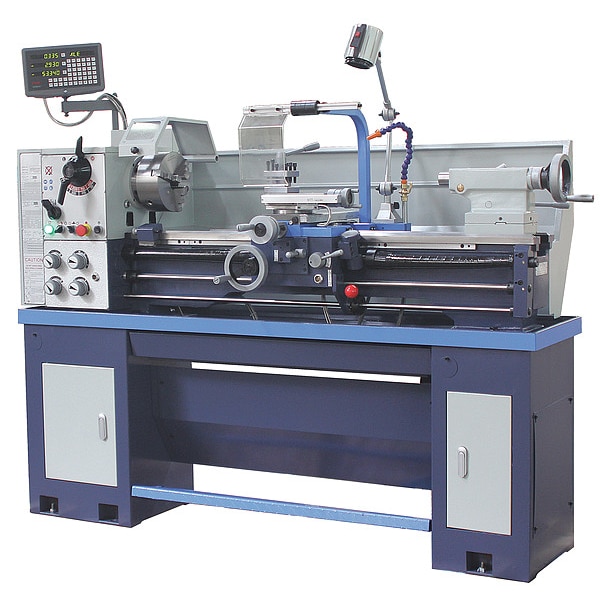

Dayton Lathe, 460V AC Volts, 2 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers 484N93 - main

Lathe, 460V AC Volts, 2 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers

  • Mfr # 484N93

  • Zoro # G8526152

product price: $14,215.99
/ea
Item requires special delivery charges. A $500.00 per item surcharge will be applied.

Key Features

Primary Application
Metal Turning
Motor HP
2
Phase
Three
Voltage
460V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
484N93
Zoro #
G8526152
UPC #
-
Country of Origin
China

Dimensions

Overall Width
30 in
Bed Width (In.)
7-3/8
Overall Height
58 in
Overall Length
76 in
Gap Length (In.)
8
Gap Length
8 in
Bed Width
7 3/8 in
Overall Depth
76 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
2
Phase
Three
Voltage
460V AC
Frequency
60 Hz
Swing Over Bed (In.)
13
Distance Between Centers
40 in
Horsepower
2 hp
Swing Over Cross Slide (In.)
6-1/2
Longitudinal Feed Rates
0.003 to 0.023
Includes
(2) 4MT Dead Centers, (4) Jaw Chucks, 4-Way Tool Post, Chuck, Digital Readout, DRO, Follower Rest, Inch, Metric Gears for Threading, Splash Guard, Steady Rest, Tool Post Safety Guard, Work Light
Thread Range (In.)
56 to 4
Spindle Taper
MT-6
Spindle Speed (RPM)
70 to 2000
Carriage Travel (In.)
7
Cross Travel (In.)
7
Hz
60
Features
Emergency Stop, Lockable Main Switch
Tailstock Taper
MT3
Swing In Gap (In.)
18-3/4
Cross Feed Rates
0.0005 to 0.015
Compound Travel (In.)
3-3/4
Tailstock Travel (In.)
5
Thread Range (mm)
0.40 to 7
Number of Threads (mm)
26
Coolant Tank Capacity
Not Rated
Distance Between Centers (In.)
40
Number of Threads (In.)
34
Number of Spindle Speeds
8
Spindle Bore (In.)
2
Swing In Gap
18 3/4 in
Number of Inch Threads
34
Min. Spindle Speed
70 RPM
Spindle Bore
2 in
Max. Metric Thread
7 mm
Application
Metal Turning
Swing Over Cross Slide
6 1/2 in
Min. Metric Thread
0.4 mm
Swing Over Bed
13 in
Max. Spindle Speed
2,000 RPM
Min. Threads per Inch
4
Number of Metric Threads
26
Max. Threads per Inch
56
Max. Cross Feed
0.0150 in
Min. Cross Feed
0.0005 in
Cross Feed - Maximum
0.015 in/rev
Spindle Speed - Maximum
2,000 RPM
Metric Thread - Minimum
0.4 mm
Threads per Inch - Minimum
4
Threads per Inch - Maximum
56
Includes Digital Readout
Digital Readout Included
Metric Thread - Maximum
7 mm
Spindle Speed - Minimum
70 RPM
Cross Feed - Minimum
0.0005 in/rev
Swing Over Gap
8 in

Description

Lathe, Distance Between Centers 40 in, Voltage 460V AC, Horsepower 2 hp, Min. Spindle Speed 70 RPM, Application Metal Turning, Overall Height 58 in, Overall Length 76 in, Overall Width 30 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
