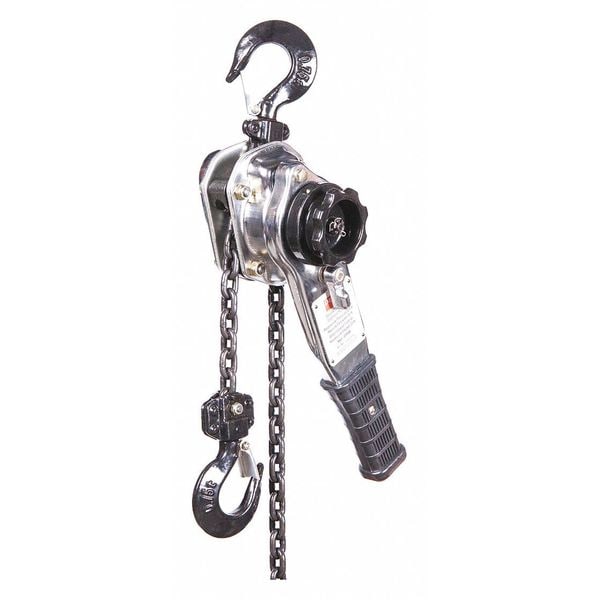

Dayton Lever Chain Hoist, 1,500 lb Load Capacity, 20 ft Hoist Lift, 29/32 in Hook Opening 3TP93 - main

Lever Chain Hoist, 1,500 lb Load Capacity, 20 ft Hoist Lift, 29/32 in Hook Opening

  • Mfr # 3TP93

  • Zoro # G0158076

product price:  $350.99
/ea
Free Shipping & Returns

Key Features

Load Capacity
1,500 lb
Includes
Safety Latch Hooks
Chain Length
20 39/64 ft
Hook Opening
29/32 in
Lever Length
10 7/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3TP93
Zoro #
G0158076
UPC #
190735293652
Country of Origin
China

Dimensions

Chain Length
20 39/64 ft
Lever Length
10 7/16 in
Manufacturers Warranty Length
1 yr
Mfr. Warranty Length
1 yr
Lifting Hook Opening Width
7/8 in
Body Width
4 3/4 in
Body Depth
5 13/16 in
Minimum Retracted Length
11 13/16 in
Maximum Lifting Length
20 ft

Details

Item
Lever Chain Hoist
Load Capacity
1,500 lb
Hoist Lift
20 ft
Includes
Safety Latch Hooks
Hook Opening
29/32 in
Chain
Alloy Steel - G100
Standards
ANSI/ASME B30.21
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
No
Pull to Lift Rated Load
42 lb
Min. Between Hooks
11 13/16 in
Brake
Double Disc Brake, Weston Style
Finish
Chain Guides: Zinc Plated; Hooks, Handwheel: Powder Coating, Housing, Lever: Chrome Plated; Side Plates
Mount Type
Hook Mounted - No Trolley
Reeving
1
Trolley Configuration
Hook Mounted - No Trolley
Color
Silver
Features
The Top and Bottom Hooks Rotate 360 Degrees and Open Slowly without Fracturing Under Overloads, Dual-Stage Reduction Gearing
Includes Brake
Brake Included
For Outdoor Use
Yes
Maximum Lifting Capacity
1,500 lb
Power Source
Lever
Chain Material
Alloy Steel
Body Material
Steel
Chain Finish
Black Tempered
Overload Protection Included
No
Chain Grade
Grade 100
Includes Clutch
Clutch Included
Lifting Hook Type
Hook with Safety Latch
Included Components
Safety Latch Hooks
Body Finish
Chrome Plated
Headroom
11 13/16 in
Number of Load Chains
1
Brake Type
Double Disc Brake, Weston Style
Operating Position
Vertical
Number of Reeves
1
Lifting Hook Material
Alloy Steel

Description

Lever Chain Hoist, Chain Length 20 5/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 11 13/16 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,500 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 13/16 in, Body Material Steel, Body Width 4 3/4 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 100, Chain Material Alloy Steel
