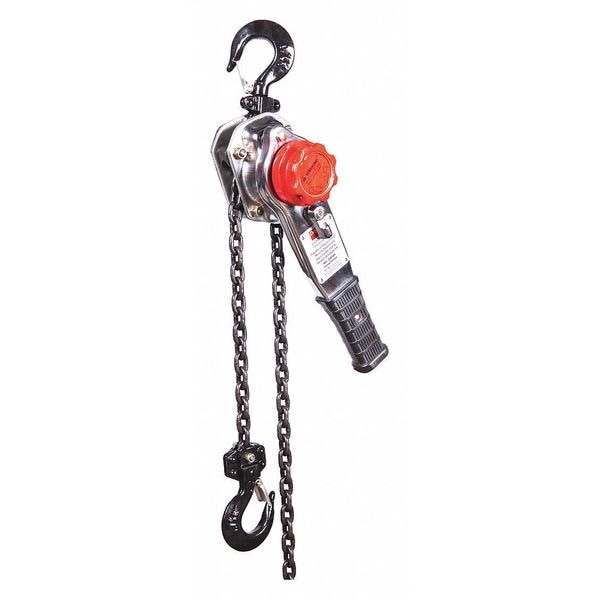

Dayton Lever Chain Hoist, 1,500 lb Load Capacity, 5 ft Hoist Lift, 29/32 in Hook Opening 29XP38 - main

Lever Chain Hoist, 1,500 lb Load Capacity, 5 ft Hoist Lift, 29/32 in Hook Opening

  • Mfr # 29XP38

  • Zoro # G9786917

product price:  $287.99
/ea
Free Shipping & Returns

Key Features

Load Capacity
1,500 lb
Includes
Safety Latch Hooks
Chain Length
5 39/64 ft
Hook Opening
29/32 in
Lever Length
10 7/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
29XP38
Zoro #
G9786917
UPC #
190735216002
Country of Origin
China

Dimensions

Chain Length
5 39/64 ft
Lever Length
10 7/16 in
Manufacturers Warranty Length
1 yr
Body Depth
5 13/16 in
Minimum Retracted Length
11 13/16 in
Body Width
4 3/4 in
Mfr. Warranty Length
1 yr
Lifting Hook Opening Width
7/8 in
Maximum Lifting Length
5 ft

Details

Item
Lever Chain Hoist
Load Capacity
1,500 lb
Hoist Lift
5 ft
Includes
Safety Latch Hooks
Hook Opening
29/32 in
Chain
Alloy Steel - G100
Standards
ANSI/ASME B30.21
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
Yes
Pull to Lift Rated Load
42 lb
Min. Between Hooks
11 13/16 in
Brake
Double Disc Brake, Weston Style
Finish
Chain Guides: Zinc Plated; Hooks, Handwheel: Powder Coating, Housing, Lever: Chrome Plated; Side Plates
Mount Type
Hook Mounted - No Trolley
Reeving
1
Trolley Configuration
Hook Mounted - No Trolley
Features
Factory-Set Overload Protection will not let Hoists Operate, But Will Still Allow Operators to Lower the Loads, Fully Enclosed Lift Wheels that Protect Gears, Rubber Grips, Safety Chain Stops
Color
Silver
Included Components
Safety Latch Hooks
Operating Position
Vertical
Maximum Lifting Capacity
1,500 lb
Brake Type
Double Disc Brake, Weston Style
Headroom
11 13/16 in
Number of Reeves
1
Includes Clutch
Clutch Included
Power Source
Lever
Includes Brake
Brake Included
For Outdoor Use
Yes
Chain Grade
Grade 100
Chain Finish
Black Tempered
Lifting Hook Material
Alloy Steel
Body Finish
Chrome Plated
Overload Protection Included
Yes
Chain Material
Alloy Steel
Number of Load Chains
1
Lifting Hook Type
Hook with Safety Latch
Body Material
Steel

Description

Lever Chain Hoist, Chain Length 5 5/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 11 13/16 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,500 lb, Maximum Lifting Length 5 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 13/16 in, Body Material Steel, Body Width 4 3/4 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 100, Chain Material Alloy Steel
