  13. Lever Chain Hoist, 1,500 lb Load Capacity, 5 ft Hoist Lift, 29/32 in Hook Opening
Shop All Lever Chain Hoists
Dayton

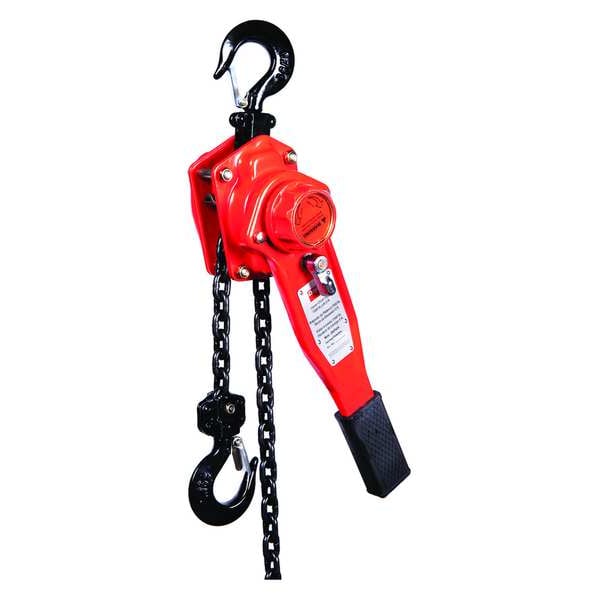

Lever Chain Hoist, 1,500 lb Load Capacity, 5 ft Hoist Lift, 29/32 in Hook Opening

product price: $350.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 1,500 lb
  • Hoist Lift 5 ft
  • Includes Safety Latch Hooks
  • Chain Length 5 21/32 ft
  • Hook Opening 29/32 in
See all product information

Product Information

Dimensions

Chain Length 5 21/32 ft
Lever Length 12 3/16 in
Manufacturers Warranty Length 1 yr
Body Width 5 5/16 in
Body Depth 5 15/16 in
Mfr. Warranty Length 1 yr
Lifting Hook Opening Width 7/8 in
Maximum Lifting Length 5 ft
Minimum Retracted Length 12 3/4 in

Details

Item Lever Chain Hoist
Load Capacity 1,500 lb
Hoist Lift 5 ft
Includes Safety Latch Hooks
Hook Opening 29/32 in
Chain Alloy Steel - G80
Standards ANSI/ASME B30.21
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection Yes
Pull to Lift Rated Load 31 lb
Min. Between Hooks 12 51/64 in
Brake Double Disc Brake, Weston Style
Finish Handwheel, Hooks, Housing, Lever, Side Plates: Powder Coating; Chain Guides: Zinc Plated
Trolley Configuration Hook Mounted - No Trolley
Reeving 1
Features Factory-Set Overload Protection will not let Hoists Operate, But Will Still Allow Operators to Lower the Loads, Fully Enclosed Lift Wheels that Protect Gears, Rubber Grips, Safety Chain Stops
Color Red
Lifting Hook Type Hook with Safety Latch
Operating Position Vertical
Chain Material Alloy Steel
Chain Grade Grade 80
Maximum Lifting Capacity 1,500 lb
Overload Protection Included Yes
Includes Clutch Clutch Included
Body Finish Powder Coated
Headroom 12 13/16 in
Brake Type Double Disc Brake, Weston Style
Body Material Steel
Power Source Lever
Number of Load Chains 1
Chain Finish Black Tempered
For Outdoor Use Yes
Lifting Hook Material Alloy Steel
Includes Brake Brake Included
Mount Type Hook Mounted - No Trolley
Included Components Safety Latch Hooks
Number of Reeves 1

Description

Lever Chain Hoist, Chain Length 5 5/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 12 13/16 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,500 lb, Maximum Lifting Length 5 ft, Mount Type Hook Mounted - No Trolley, Body Depth 5 15/16 in, Body Material Steel, Body Width 5 5/16 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel, Color Red
