  13. Lever Chain Hoist, 3,000 lb Load Capacity, 10 ft Hoist Lift, 1 7/64 in Hook Opening
Shop All Lever Chain Hoists
Dayton

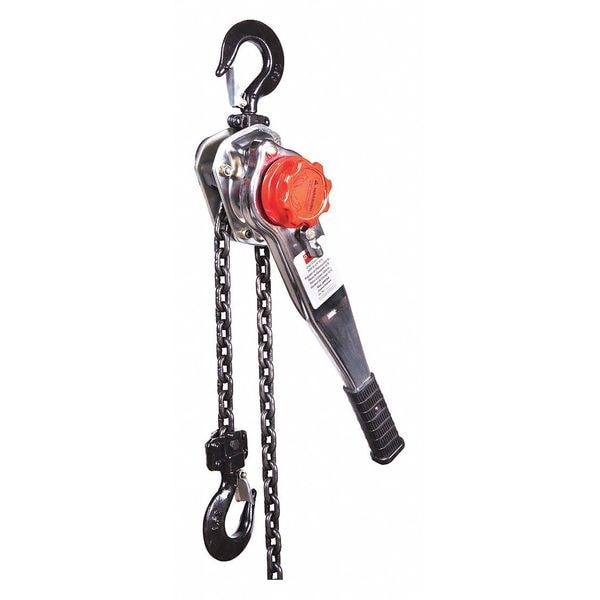

Lever Chain Hoist, 3,000 lb Load Capacity, 10 ft Hoist Lift, 1 7/64 in Hook Opening

product price: $422.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 3,000 lb
  • Hoist Lift 10 ft
  • Includes Safety Latch Hooks
  • Chain Length 10 49/64 ft
  • Hook Opening 1 7/64 in
See all product information

Product Information

Dimensions

Chain Length 10 49/64 ft
Lever Length 16 3/8 in
Manufacturers Warranty Length 1 yr
Body Width 5 9/16 in
Body Depth 6 1/2 in
Minimum Retracted Length 14 3/8 in
Mfr. Warranty Length 1 yr
Maximum Lifting Length 10 ft
Lifting Hook Opening Width 1 1/8 in

Details

Item Lever Chain Hoist
Load Capacity 3,000 lb
Hoist Lift 10 ft
Includes Safety Latch Hooks
Hook Opening 1 7/64 in
Chain Alloy Steel - G100
Standards ANSI/ASME B30.21
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection Yes
Pull to Lift Rated Load 46 lb
Min. Between Hooks 14 3/8 in
Brake Double Disc Brake, Weston Style
Finish Chain Guides: Zinc Plated; Hooks, Handwheel: Powder Coating, Housing, Lever: Chrome Plated; Side Plates
Reeving 1
Trolley Configuration Hook Mounted - No Trolley
Features Load Limiters to Help Prevent Potential Overloads, When Activated, Factory-Set Overload Protection will not let Hoists Operate, but will Allow Operators to Lower the Loads
Color Silver
Number of Load Chains 1
Lifting Hook Type Hook with Safety Latch
Chain Grade Grade 100
Includes Clutch Clutch Included
Maximum Lifting Capacity 3,000 lb
Included Components Safety Latch Hooks
Brake Type Double Disc Brake, Weston Style
Chain Finish Black Tempered
Headroom 14 3/8 in
Lifting Hook Material Alloy Steel
Number of Reeves 1
Chain Material Alloy Steel
Body Finish Chrome Plated
Overload Protection Included Yes
Includes Brake Brake Included
Mount Type Hook Mounted - No Trolley
Power Source Lever
Body Material Steel
For Outdoor Use Yes
Operating Position Vertical

Description

Lever Chain Hoist, Chain Length 10 3/4 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 14 3/8 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 3,000 lb, Maximum Lifting Length 10 ft, Mount Type Hook Mounted - No Trolley, Body Depth 6 1/2 in, Body Material Steel, Body Width 5 9/16 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 100, Chain Material Alloy Steel
