  13. Lever Chain Hoist, 3,000 lb Load Capacity, 20 ft Hoist Lift, 1 7/64 in Hook Opening
Shop All Lever Chain Hoists
Dayton

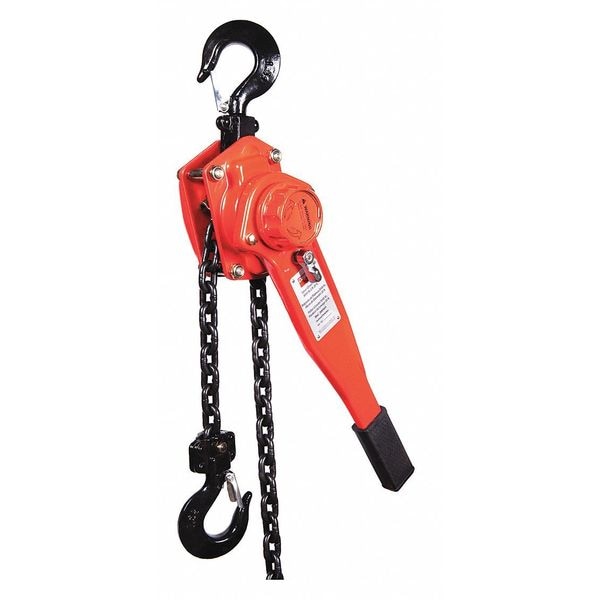

Lever Chain Hoist, 3,000 lb Load Capacity, 20 ft Hoist Lift, 1 7/64 in Hook Opening

product price: $482.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 3,000 lb
  • Hoist Lift 20 ft
  • Includes Safety Latch Hooks
  • Chain Length 20 55/64 ft
  • Hook Opening 1 7/64 in
See all product information

Product Information

Dimensions

Chain Length 20 55/64 ft
Lever Length 16 1/2 in
Manufacturers Warranty Length 1 yr
Mfr. Warranty Length 1 yr
Maximum Lifting Length 20 ft
Body Depth 7 in
Body Width 6 3/8 in
Lifting Hook Opening Width 1 1/8 in
Minimum Retracted Length 15 3/4 in

Details

Item Lever Chain Hoist
Load Capacity 3,000 lb
Hoist Lift 20 ft
Includes Safety Latch Hooks
Hook Opening 1 7/64 in
Chain Alloy Steel - G80
Standards ANSI/ASME B30.21
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection Yes
Pull to Lift Rated Load 49 lb
Min. Between Hooks 15 3/4 in
Brake Double Disc Brake, Weston Style
Finish Handwheel, Hooks, Housing, Lever, Side Plates: Powder Coating; Chain Guides: Zinc Plated
Trolley Configuration Hook Mounted - No Trolley
Reeving 1
Color Red
Features Factory-Set Overload Protection will not let Hoists Operate, but will allow operators to Lower Loads, Fully Enclosed Lift Wheel that Protects Gears, Powder-Coated Finish, Rubber Grip, Safety Chain Stop
For Outdoor Use Yes
Included Components Safety Latch Hooks
Body Material Steel
Lifting Hook Type Hook with Safety Latch
Number of Reeves 1
Number of Load Chains 1
Mount Type Hook Mounted - No Trolley
Power Source Lever
Maximum Lifting Capacity 3,000 lb
Operating Position Vertical
Chain Finish Black Tempered
Includes Brake Brake Included
Brake Type Double Disc Brake, Weston Style
Overload Protection Included Yes
Includes Clutch Clutch Included
Lifting Hook Material Alloy Steel
Chain Material Alloy Steel
Body Finish Powder Coated
Headroom 15 3/4 in
Chain Grade Grade 80

Description

Lever Chain Hoist, Chain Length 20 7/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 15 3/4 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 3,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 7 in, Body Material Steel, Body Width 6 3/8 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel, Color Red
