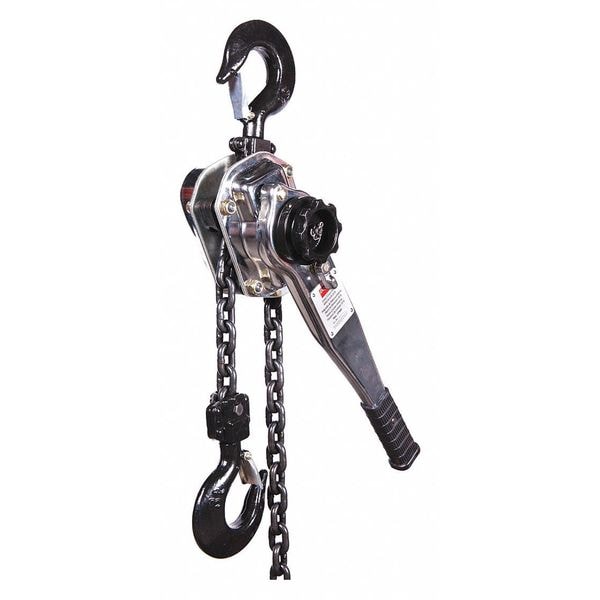

Dayton Lever Chain Hoist, 6,000 lb Load Capacity, 20 ft Hoist Lift, 1 29/64 in Hook Opening 3TP99 - main

Lever Chain Hoist, 6,000 lb Load Capacity, 20 ft Hoist Lift, 1 29/64 in Hook Opening

  • Mfr # 3TP99

  • Zoro # G0158261

product price:  $605.99
/ea
Free Shipping & Returns

Key Features

Load Capacity
6,000 lb
Includes
Safety Latch Hooks
Chain Length
20 31/32 ft
Hook Opening
1 29/64 in
Lever Length
16 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3TP99
Zoro #
G0158261
UPC #
190735293713
Country of Origin
China

Dimensions

Chain Length
20 31/32 ft
Lever Length
16 1/2 in
Manufacturers Warranty Length
1 yr
Mfr. Warranty Length
1 yr
Body Width
7 in
Maximum Lifting Length
20 ft
Lifting Hook Opening Width
1 7/16 in
Minimum Retracted Length
18 1/2 in
Body Depth
7 11/16 in

Details

Item
Lever Chain Hoist
Load Capacity
6,000 lb
Hoist Lift
20 ft
Includes
Safety Latch Hooks
Hook Opening
1 29/64 in
Chain
Alloy Steel - G100
Standards
ANSI/ASME B30.21
Hoist Mount
Hook Mounted - No Trolley
Hoist Overload Protection
No
Pull to Lift Rated Load
68 lb
Min. Between Hooks
18 1/2 in
Brake
Double Disc Brake, Weston Style
Finish
Chain Guides: Zinc Plated; Hooks, Handwheel: Powder Coating, Housing, Lever: Chrome Plated; Side Plates
Mount Type
Hook Mounted - No Trolley
Trolley Configuration
Hook Mounted - No Trolley
Reeving
1
Features
The Top and Bottom Hooks Rotate 360 Degrees and Open Slowly without Fracturing Under Overloads, Dual-Stage Reduction Gearing
Color
Silver
Number of Reeves
1
Includes Brake
Brake Included
Lifting Hook Type
Hook with Safety Latch
Chain Material
Alloy Steel
Operating Position
Vertical
Chain Grade
Grade 100
Body Material
Steel
Included Components
Safety Latch Hooks
Brake Type
Double Disc Brake, Weston Style
For Outdoor Use
Yes
Chain Finish
Black Tempered
Headroom
18 1/2 in
Body Finish
Chrome Plated
Overload Protection Included
No
Maximum Lifting Capacity
6,000 lb
Includes Clutch
Clutch Included
Lifting Hook Material
Alloy Steel
Power Source
Lever
Number of Load Chains
1

Description

Lever Chain Hoist, Chain Length 20 15/16 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 18 1/2 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 6,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 7 11/16 in, Body Material Steel, Body Width 7 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 100, Chain Material Alloy Steel
