Shop DAYTON

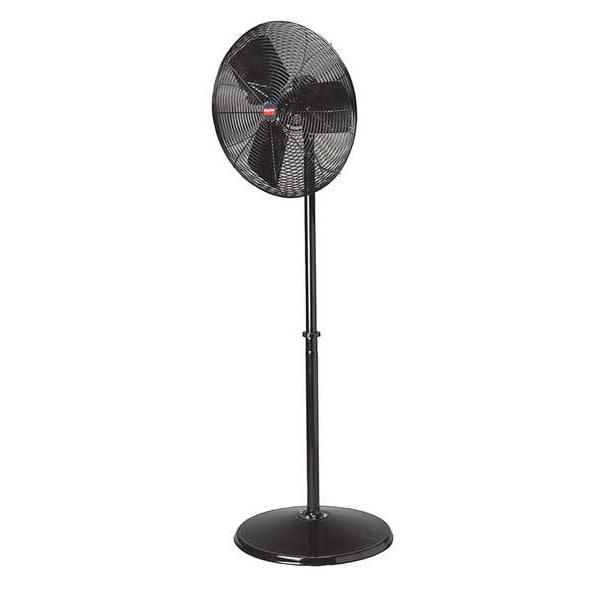

Light Duty Industrial Fan, 30 in Blade Dia, Non-Oscillating, 115VAC, 4650/7250 CFM

  • Mfr # 1RWB5

  • Zoro # G0318936

product price:
$
324.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1RWB5
Zoro #
G0318936
UPC #
190735146934
Country of Origin
China

Dimensions

Blade Diameter
30 in
Shaft Dia.
9/16 in
Width
33 in
Height
79 in
Max. Depth
26"
Outside Dia.
33"
Base Dia.
27 3/16 in
Fan Cord Length
9 ft
Depth
27 in
Height Adjustment
Adjustable
Overall Height - Minimum
61 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
Single
Motor HP
1/4 hp
Air Flow
4,650/7,250 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
77 dBA
Item
Freestanding Fan
Watts
320/225 W
Motor Type
Permanent Split Capacitor
Fan Accessory Style
Standard
Application
Spot Cooling and People Cooling
Motor Enclosure
Open Air Over
Number of Conductors
3
Requires
Assembly
CFM/Watt
19.9/24.3
Air Velocity @ 60 Ft.
280/250 fpm
Fan Mounting Location
Pedestal
Includes
Column, Mounting Hardware, Pedestal
Max. Ambient Temp.
104 Degrees F
Standards
cULus
Air Velocity @ 20 Ft.
715/480 fpm
Motor RPM
1100/900
Fan Style
Standard
Hz
60 Hz
NEMA Plug Configuration
5-15P
Mobile/Stationary
Stationary
CFM Low
4650
Thermal Protection
Automatic Reset
Air Velocity @ 10 Ft.
1010/680 fpm
Motor Insulation
B
Assembled
No
Housing Material
Steel
Wire Guard Finish
Powder Coated
CFM High
7250
Environmental Applications
Industrial
Number of Blades
3
Guard Material
Steel
Air Velocity @ 40 Ft.
370/350 fpm
Bearing Type
Ball
RPM
900 RPM, 1,100 RPM
Wheeled Base
Stationary
Assembly Required
Yes
Color
Black
Fan Housing Material
Steel
Amps
2.9/1.9 A
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Removable Base
Permanently Lubricated
Guard Color
Black
Base Type
Pedestal
Environment Rating
Dry
Fan Shape
Basket
Bearing Protection
Sealed
Airflow
4,650 cfm, 7,250 cfm
Housing Finish
Painted
High-Visibility
No
For Location
Manufacturing Plant
Corrosion-Resistant
No
Head Tilt Adjustment
35 Degrees

Description

Light-Duty Industrial Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 7250, CFM Low 4650, Air Velocity @ 20 Ft. 715/480 fpm, Motor HP 1/4 hp, Motor RPM 1100/900, Operating Amps 2.9/1.9, Fan Mounting Location Pedestal, Fan Accessory Style Standard, Fan RPM 1100/900, Sound Level 77 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 320/225, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 33 In., Height 79 in
