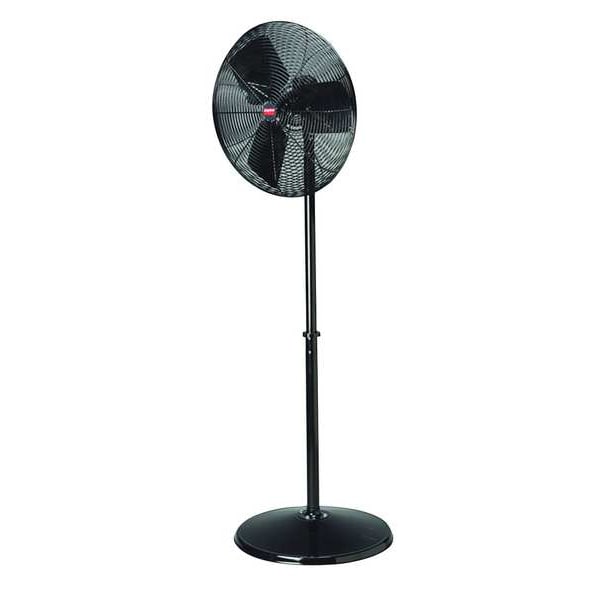

Dayton Light Duty Industrial Fan, Pedestal Mount, 20 in Blade Dia, 120V, 8,662/9,183 cfm, Non-Oscillating 2LY96 - main

Light Duty Industrial Fan, Pedestal Mount, 20 in Blade Dia, 120V, 8,662/9,183 cfm, Non-Oscillating

  • Mfr # 2LY96

  • Zoro # G2601821

product price:  $245.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
20 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2LY96
Zoro #
G2601821
UPC #
190735222737
Country of Origin
Multiple

Dimensions

Blade Diameter
20 in
Shaft Dia.
1/2 in
Width
24 in
Height
75 in
Max. Depth
27 in
Outside Dia.
23 in
Base Dia.
27 3/16 in
Fan Cord Length
9 ft
Depth
27 in
Height Adjustment
Adjustable
Overall Height - Minimum
57 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V
Phase
1
Motor HP
1/6
Air Flow
8,662/9,183 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
72 dBA
Item
Industrial Fan
Watts
240/180 W
CFM Low
8662
Fan Style
Light Duty
Air Velocity @ 60 Ft.
150/130 fpm
Motor Insulation
Class B
Mobile/Stationary
Stationary
Thermal Protection
Automatic Reset
Assembled
No
Wire Guard Finish
Powder Coated
Requires
Assembly
Air Velocity @ 10 Ft.
800/550 fpm
Guard Material
Steel
Includes
Column, Mounting Hardware, Pedestal
Air Velocity @ 40 Ft.
200/190 fpm
Fan Mounting Location
Pedestal
Motor Type
Permanent Split Capacitor
Standards
cULus
Housing Material
Steel
Application
Spot Cooling and People Cooling
Fan Accessory Style
Standard
Motor Enclosure
Open Air Over
Motor RPM
1,100/950 RPM
Number of Blades
3
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Number of Conductors
3
CFM/Watt
15.1/15.0
Hz
60 Hz
Environmental Applications
Industrial
Air Velocity @ 20 Ft.
400/350 fpm
CFM High
9183
Max. Ambient Temp.
104 Degrees F
Fan Housing Material
Steel
RPM
1,000 RPM, 1,200 RPM
Wheeled Base
Stationary
Color
Black
Assembly Required
Yes
Amps
2.0/1.5
Material
Steel
Motor hp
1/6 hp
NEMA plug Configuration
5-15p
Bearing Protection
Sealed
Corrosion-Resistant
No
Housing Finish
Painted
Fan Shape
Basket
Base Type
Pedestal
High-Visibility
No
Head Tilt Adjustment
35 Degrees
For Location
Manufacturing Plant
Removable Base
Permanently Lubricated
Guard Color
Black
Environment Rating
Dry
Airflow
2,600 cfm, 3,700 cfm

Description

Freestanding Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 20 in, Non-Oscillating, Fan Cord Length 9 ft, 240/180 W Watts, 1,000 RPM, 1,200 RPM RPM, Number of Blades 3, 2/1.5 A Amps, Height 75 in, Width 27 5/16 in, 60 Hz Hz, Bearing Type Ball, Blade Material Aluminum, Steel, 3, 5-15P, Black, Assembly, cULus, Column, Mounting Hardware, Pedestal
