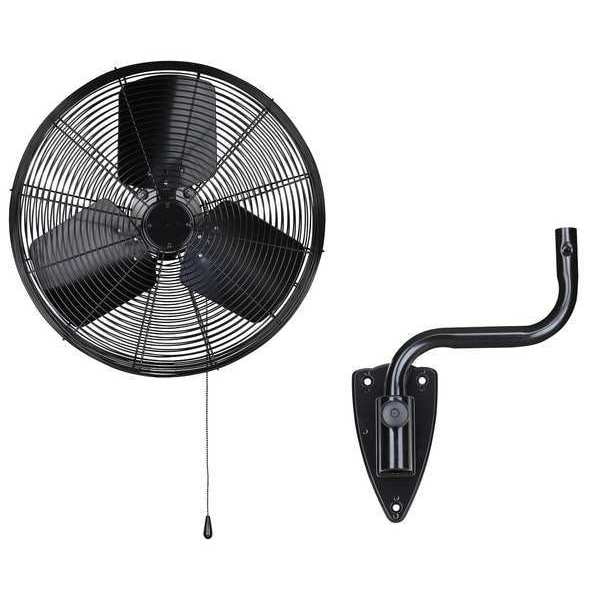

Light Duty Industrial Fan, Wall Mount, 20 in Blade Dia, 120V, 5,100/6,200 cfm, Oscillating

  • Mfr # 13V402

  • Zoro # G3946013

product price:  $288.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
1
Motor HP
1/7 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
13V402
Zoro #
G3946013
UPC #
190735121450
Country of Origin
China

Dimensions

Blade Diameter
20 in
Max. Depth
24"
Width
22 1/4 in
Shaft Dia.
1/2 in
Height
39 in
Height Adjustment
Fixed Height
Fan Cord Length
9 ft
Depth
24 in
Max. Mounting Height
Unrestricted

Details

Oscillation
Oscillating
Number of Speeds
2
Voltage
120V AC
Phase
1
Motor HP
1/7 hp
Air Flow
5,100/6,200 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
68 dBA
Item
Mounted Fan
Environmental Applications
Industrial
Max. Ambient Temp.
104 Degrees F
Assembled
No
Motor RPM
1100/925
Motor Insulation
B
Housing Material
Steel
Mobile/Stationary
Stationary
Bearing Type
Ball
Wire Guard Finish
Powder Coated
Includes
Mounting Hardware, Secondary Safety Support Cable, Mounting Bracket
Thermal Protection
Automatic Reset
Application
Spot Cooling and People Cooling
Hz
60 Hz
Number of Conductors
3
CFM/Watt
28.4/32.3
Fan Mounting Location
Wall
Watts
220/180 W
Motor Enclosure
Totally Enclosed Air-Over
Standards
cULus
Guard Material
Steel
Motor Type
Permanent Split Capacitor
Number of Blades
3
NEMA Plug Configuration
5-15P
Full Load Amps
1.9
CFM High
6200
CFM Low
5100
Fan Accessory Style
Standard
Requires
Assembly
Fan Style
Standard
Air Velocity @ 20 Ft.
485/386 fpm
Air Velocity @ 40 Ft.
174/173 fpm
Air Velocity @ 10 Ft.
571/522 fpm
Air Velocity @ 60 Ft.
135/41 fpm
Assembly Required
Yes
Fan Housing Material
Steel
Wheeled Base
Stationary
Color
Black
RPM
1,010 RPM, 1,118 RPM
Amps
1.78/1.54
Material
Steel
Motor hp
1/5 hp
NEMA plug Configuration
5-15p
High-Visibility
No
Features
AC Motor
Bearing Protection
Double-Sealed
Guard Color
Black
Smart Connectivity
Not Bluetooth Compatible, Not Wi-Fi Compatible
Head Tilt Adjustment
110 Degrees
Corrosion-Resistant
No
Environment Rating
Dry
Removable Base
Permanently Lubricated
Mount Type
Arm
Fan Power Source
Plug-In
Sound Level - Minimum
65 dBA
For Location
Manufacturing Plant
Airflow
5,593 cfm, 7,966 cfm
Fan Shape
Basket
IP Rating
Not Rated
Motor Design
Permanent Split Capacitor

Description

Mounted Fan, Blade Dia. 20 in, Stationary, Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 6200, CFM Low 5100, Air Velocity @ 20 Ft. 485/386 fpm, Motor HP 1/7 hp, Motor RPM 1100/925, Operating Amps 2.0/1.6, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1100/925, Sound Level 68 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 220/180 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Height 39 in, Width 22 1/4 in, Max. Depth 24 In.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
