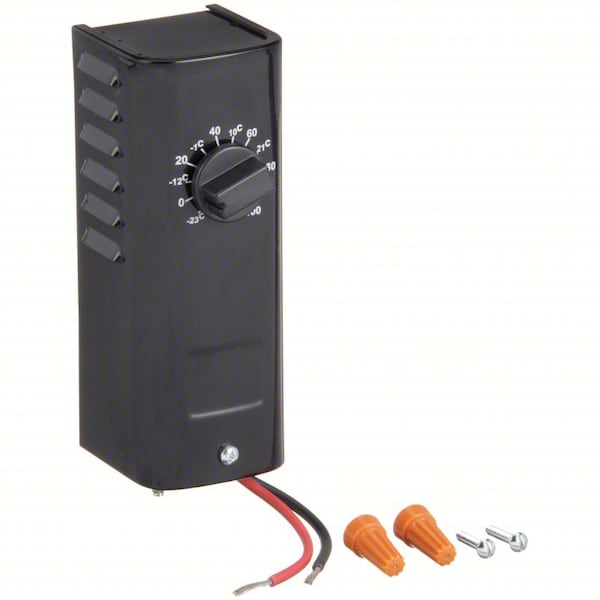

Line Voltage Mechanical Thermostat, Heat Only, -10 to 100F, 120 to 277V AC, 1H

  • Mfr # 2E815
  • Zoro # G1493755
product price:
$
50.19
/ea

Key Features

Compatible System Type
Gas or Forced Air Furnaces
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2E815
Zoro #
G1493755
UPC #
190735218433
Country of Origin
China

Dimensions

Overall Height
5-1/2 in
Lead Length
6 in
Overall Width
2-3/16 in
Overall Depth
2-3/16 in

Details

Compatible System Type
Gas or Forced Air Furnaces
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Heating Stages
1
Temperature Control Range
-10 to 100 Degrees F
Voltage
120V AC to 277V AC
Item
Line Voltage Mechanical Thermostat
Number of Switches
1
Includes
Contacts that Open on Temperature Rise for Heating Applications
Contact Rating Resistive @ 120V
22 A
Contact Rating Resistive @ 240V
22 A
Sensor Type
Bi-Metal
Standards
CSA Certified, UL Listed
Inductive Amps @ 120V
13.8 A
Inductive Amps @ 240V
10 A
Inductive Amps @ 208V
10 A
Thermostat Type
Line Voltage
Temperature Differential
6 Degrees F to 8 Degrees F
Differential Type
Adjustable
Enclosure NEMA Rating
1
Full Load Amps @ 120V AC
15 A
Maximum Control Temperature
100 Degrees F
Number of Poles
1
Minimum Control Temperature
-10 Degrees F
Maximum Operating Temperature
100 Degrees F
Enclosure Color
Black
Full Load Amps @ 240V AC
10 A
Minimum Operating Temperature
-10 Degrees F
Stages
1H
Amperage
22 A
Mounting Direction
Vertical
Temperature Scale
Fahrenheit/Celsius
Enclosure Finish
Powder Coated
Housing Material
Steel
Programming Capability
Not Programmable
Operating Temperature Range
-10 Degrees to 100 Degrees F
Enclosure Material
Steel

Description

Mech Tstat,Heat Only,Steel,100/-10F
