  11. Louver, Adj w/ 40 to 52 In, Galv Steel
Shop All Intake Louvers
Dayton

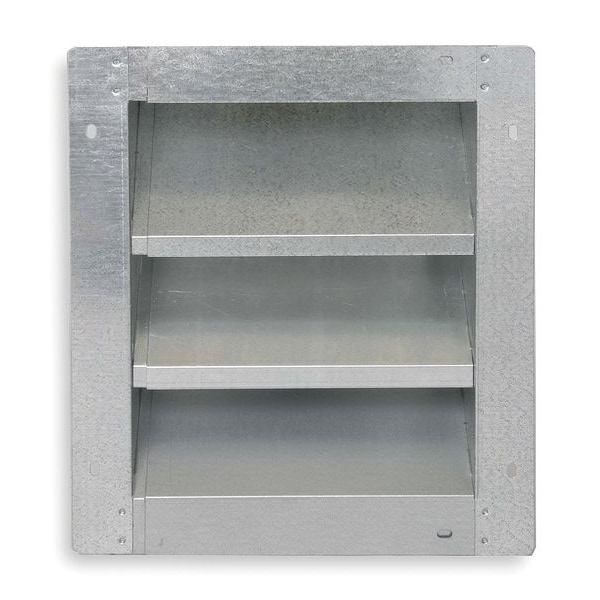

Louver, Adj w/ 40 to 52 In, Galv Steel

product price: $283.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Louver Type Stationary Blade
  • Louver Free Area 2.350 to 3.150 sq ft
  • For Use With Intake or Exhaust Applications
  • Min. Wall Opening (In.) 24H x 36W
  • Louver Max. Intake 3,030 cfm
See all product information

Product Information

Dimensions

Intake Louver Inside Width 36 in to 48 in
Intake Louver Outside Height 28 in
Flange Width (In.) 2 in
Outside Width (In.) 40 to 52
Inside Height (In.) 24 in
Mounting Hole Size (In.) 9/32 x 1/2
Minimum Outside Width 40 in
Inside Width 36 in
Maximum Outside Width 52 in
Rough Opening Height 24 in
Frame Depth 4 in
Rough Opening Width 36 in
Flange Width 2 in
Outside Height 28 in
Inside Height 24 in
Outside Width 40 in
Fixed or Adjustable Dimensions Adjustable Width

Details

Item 28"H 40"W Non-Drnbl GSteel Intake Louver
Louver Item Stationary Intake Louver
Louver Type Stationary Blade
Louver Free Area 2.350 to 3.150 sq ft
For Use With Intake or Exhaust Applications
Min. Wall Opening (In.) 24H x 36W
Louver Max. Intake 3,030 cfm
Louver Max. Exhaust 4,330 cfm
Louver Material G90 Galvanized Steel
Number of Blades 3
Max. Velocity (FPM) 3,000 fpm
Blade Angle (Deg.) 45
Includes Bird Screen, Screen Fasteners
Blade Type Non-Drainable
Intake or Exhaust Application Exhaust, Intake
Frame Type Flanged
Free Area 3.2 sq ft
Finish Mill
Louver Maximum Intake 3,030 cfm
Beginning Point of Water Penetration 766 fpm
Material Grade G90
Maximum Exhaust 4,330 cfm
Material Galvanized Steel
Blade Angle 45 Degrees
Maximum Air Velocity 3000 fpm
Mounting Style Surface Mount

Description

28 In.H 40 In.W Non-Drnbl GSteel Intake Louver, Louver Type Stationary Blade, Frame Type Flanged, Frame Depth 4 in, Mounting Style Surface Mount, Outside Height 28 in, Outside Width 40 in, Rough Opening Height 24 in, Rough Opening Width 36 in, Louver Maximum Intake 3,030 cfm, Maximum Exhaust 4,330 cfm, Maximum Outside Width 52 in, Minimum Outside Width 40 in, Flange Width 2 in, Free Area 3.2 sq ft, Beginning Point of Water Penetration 766 fpm, Maximum Air Velocity 3000 fpm
