Dayton

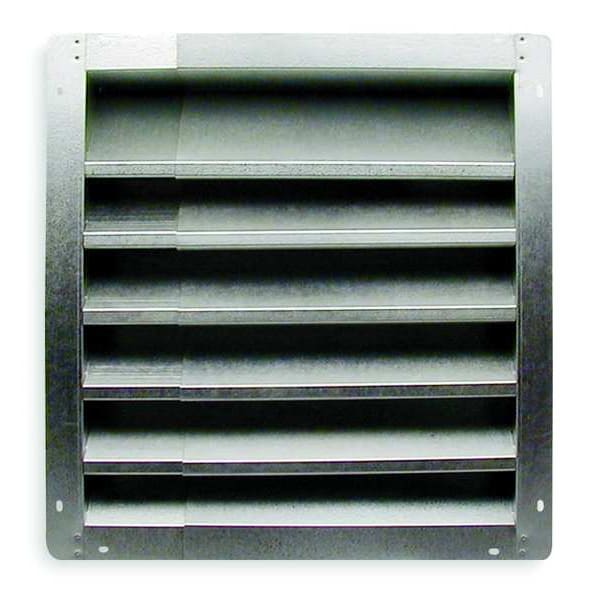

Louver, Intake, 21-36 In

product price: $236.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Louver Type Stationary Blade
  • Louver Free Area 1.620 to 2.830 sq ft
  • Min. Wall Opening (In.) 30H x 21W
  • For Use With Intake or Exhaust Applications
  • Louver Max. Intake 2,625 cfm
See all product information

Product Information

Dimensions

Intake Louver Inside Width 21 in to 36 in
Intake Louver Outside Height 34 in
Outside Width (In.) 25 to 40
Mounting Hole Size (In.) 9/32 x 1/2
Flange Width (In.) 2 in
Inside Height (In.) 30 in
Outside Height 34 in
Frame Depth 4 in
Flange Width 2 in
Fixed or Adjustable Dimensions Adjustable Width
Rough Opening Width 21 in
Minimum Outside Width 25 in
Maximum Outside Width 40 in
Inside Width 21 in
Rough Opening Height 30 in
Inside Height 30 in
Outside Width 24 in

Details

Item 34"H 24"W Non-Drnbl GSteel Intake Louver
Louver Item Stationary Intake Louver
Louver Type Stationary Blade
Louver Free Area 1.620 to 2.830 sq ft
Min. Wall Opening (In.) 30H x 21W
For Use With Intake or Exhaust Applications
Louver Max. Intake 2,625 cfm
Louver Max. Exhaust 3,750 cfm
Louver Material G90 Galvanized Steel
Blade Angle (Deg.) 45
Number of Blades 5
Includes Bird Screen, Screen Fasteners
Max. Velocity (FPM) 3,000 fpm
Free Area 2.8 sq ft
Beginning Point of Water Penetration 766 fpm
Frame Type Flanged
Louver Maximum Intake 2,625 cfm
Mounting Style Surface Mount
Finish Mill
Blade Type Non-Drainable
Maximum Air Velocity 3000 fpm
Intake or Exhaust Application Exhaust, Intake
Blade Angle 45 Degrees
Maximum Exhaust 3,750 cfm
Material Grade G90
Material Galvanized Steel

Description

34 In.H 24 In.W Non-Drnbl GSteel Intake Louver, Louver Type Stationary Blade, Frame Type Flanged, Frame Depth 4 in, Mounting Style Surface Mount, Outside Height 34 in, Outside Width 24 in, Rough Opening Height 30 in, Rough Opening Width 21 in, Louver Maximum Intake 2,625 cfm, Maximum Exhaust 3,750 cfm, Maximum Outside Width 40 in, Minimum Outside Width 25 in, Flange Width 2 in, Free Area 2.8 sq ft, Beginning Point of Water Penetration 766 fpm, Maximum Air Velocity 3000 fpm
