Dayton

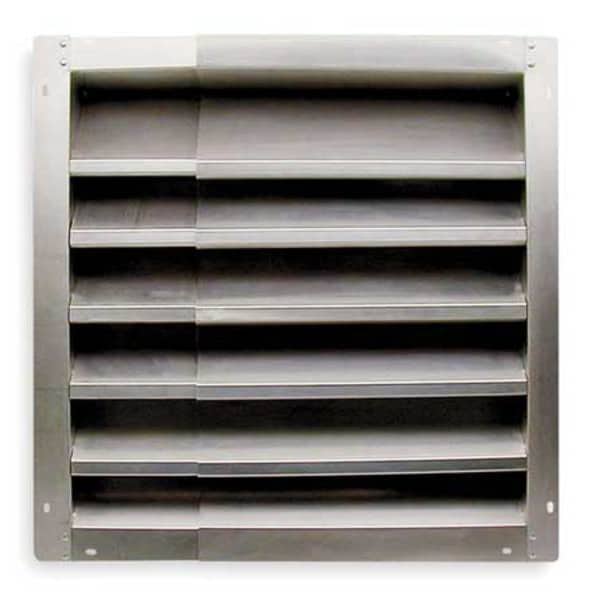

Louver, Intake, 21-36 In, Aluminum

product price: $307.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Louver Type Stationary Blade
  • Louver Free Area 1.620 to 2.830 sq ft
  • For Use With Intake or Exhaust Applications
  • Min. Wall Opening (In.) 30H x 21W
  • Louver Max. Intake 2,625 cfm
See all product information

Product Information

Dimensions

Intake Louver Inside Width 21 in to 36 in
Intake Louver Outside Height 34 in
Flange Width (In.) 2 in
Mounting Hole Size (In.) 9/32 x 1/2
Outside Width (In.) 25 to 40
Inside Height (In.) 30 in
Outside Height 34 in
Minimum Outside Width 25 in
Frame Depth 4 in
Rough Opening Width 21 in
Inside Height 30 in
Outside Width 25 in
Maximum Outside Width 40 in
Rough Opening Height 30 in
Inside Width 21 in
Flange Width 2 in
Fixed or Adjustable Dimensions Adjustable Width

Details

Louver Item Stationary Intake Louver
Item 34"H 25"W Non-Drnbl Alu Intake Louver
Louver Type Stationary Blade
Louver Free Area 1.620 to 2.830 sq ft
For Use With Intake or Exhaust Applications
Min. Wall Opening (In.) 30H x 21W
Louver Max. Intake 2,625 cfm
Louver Max. Exhaust 3,750 cfm
Louver Material 3003 Aluminum
Includes Bird Screen, Screen Fasteners
Number of Blades 5
Max. Velocity (FPM) 3,000 fpm
Blade Angle (Deg.) 45
Frame Type Flanged
Blade Angle 45 Degrees
Free Area 2.8 sq ft
Beginning Point of Water Penetration 766 fpm
Material Aluminum
Maximum Exhaust 3,750 cfm
Material Grade 3003
Mounting Style Surface Mount
Finish Mill
Maximum Air Velocity 3000 fpm
Intake or Exhaust Application Exhaust, Intake
Louver Maximum Intake 2,625 cfm
Blade Type Non-Drainable

Description

34 In.H 25 In.W Non-Drnbl Alu Intake Louver, Louver Type Stationary Blade, Frame Type Flanged, Frame Depth 4 in, Mounting Style Surface Mount, Outside Height 34 in, Outside Width 25 in, Rough Opening Height 30 in, Rough Opening Width 21 in, Louver Maximum Intake 2,625 cfm, Maximum Exhaust 3,750 cfm, Maximum Outside Width 40 in, Minimum Outside Width 25 in, Flange Width 2 in, Free Area 2.8 sq ft, Beginning Point of Water Penetration 766 fpm, Maximum Air Velocity 3000 fpm, Blade Angle 45 Degrees
