  13. Manual Chain Hoist, 1000 lb., Lift 20 ft.
Shop All Manual Chain Hoists
Dayton

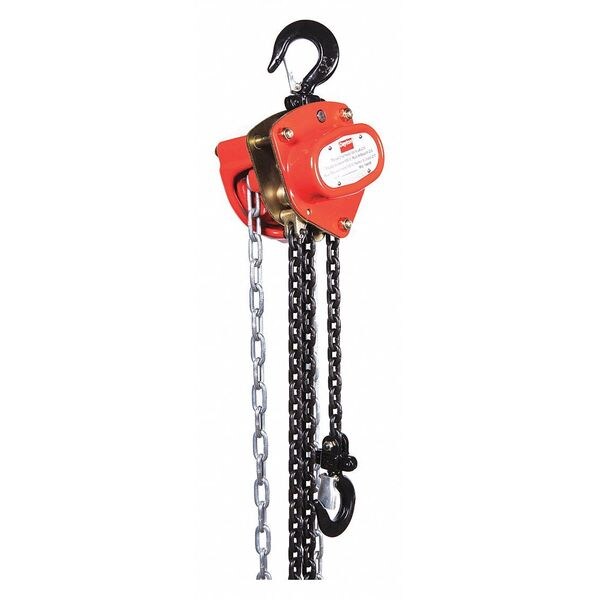

Manual Chain Hoist, 1000 lb., Lift 20 ft.

product price: $244.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 1,000 lb
  • Hoist Lift 20 ft
  • Hoist Mount Hook Mounted - No Trolley
  • Hoist Overload Protection No
  • Pull to Lift Rated Load 58 lb
See all product information

Product Information

Dimensions

Housing Length 5 19/64 in
Housing Width 5 1/4 in
Housing Depth 5 in
Manufacturers Warranty Length 1 yr
Chain Length 20 5/8 ft
Body Width 5 1/8 in
Lifting Hook Opening Width 3/4 in
Mfr. Warranty Length 1 yr
Minimum Retracted Length 11 7/16 in
Maximum Lifting Length 20 ft
Body Depth 4 15/16 in

Details

Load Capacity 1,000 lb
Hoist Lift 20 ft
Hoist Mount Hook Mounted - No Trolley
Hoist Overload Protection No
Pull to Lift Rated Load 58 lb
Min. Between Hooks 11 1/2 in
Hook Opening 25/32 in
Includes Safety Latch Hooks
Standards ANSI/ASME B30.16
Trolley Configuration Hook Mounted - No Trolley
Item Manual Chain Hoist
Brake Weston Style, Double Disc Brake
Features Heat-Treated Alloy Steel Hooks, Rugged Die-Cast Aluminum
Color Red
Headroom 11 1/2 in
Number of Load Chains 1
Includes Clutch Clutch Included
For Outdoor Use Yes
Body Material Steel
Chain Material Alloy Steel
Brake Type Double Disc Brake, Weston Style
Lifting Hook Material Alloy Steel
Number of Reeves 1
Power Source Manual
Operating Position Vertical
Mount Type Hook Mounted - No Trolley
Includes Brake Brake Included
Chain Finish Black Tempered, Zinc Plated
Chain Grade Grade 80
Overload Protection Included No
Lifting Hook Type Hook with Safety Latch
Maximum Lifting Capacity 1,000 lb
Included Components Safety Latch Hooks

Description

Manual Chain Hoist, Chain Length 20 5/8 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 11 1/2 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 1,000 lb, Maximum Lifting Length 20 ft, Mount Type Hook Mounted - No Trolley, Body Depth 4 15/16 in, Body Material Steel, Body Width 5 1/8 in, Brake Type Double Disc Brake, Weston Style, Chain Grade Grade 80, Chain Material Alloy Steel, Color Red
