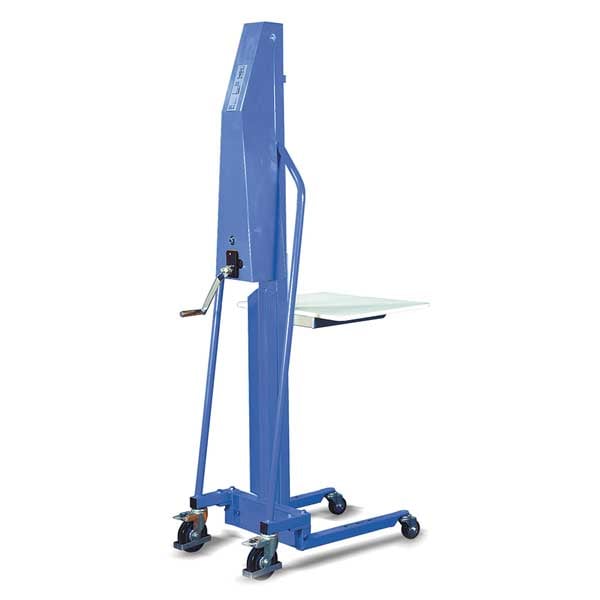

Dayton Manual Platform Lift Trucks, Manual, 440 lb Load Capacity, Hand Winch Lift Control 2MPU3 - main

Manual Platform Lift Trucks, Manual, 440 lb Load Capacity, Hand Winch Lift Control

  • Mfr # 2MPU3

  • Zoro # G3482081

product price: $730.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Overall Height
76 in
Overall Length
34 3/4 in
Overall Width
24 5/8 in
Color
Blue, White
Load Capacity
440 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2MPU3
Zoro #
G3482081
UPC #
190735226773
Country of Origin
China

Dimensions

Overall Height
76 in
Overall Length
34 3/4 in
Overall Width
24 5/8 in
Platform Length
18 1/2 in
Front Wheel Dia.
3"
Rear Wheel Dia.
5"
Rear Caster Dia.
5 in
Platform Width
24 in
Lifting Height Min.
4 1/2 in
Front Caster Dia.
3 in
Lifting Height Max.
59 in
Platform LxW
18 1/2 in x 24 in
Maximum Lifting Height
59 in
Caster Wheel Width
1 1/8 in
Base Inside Width
16 in
Overall Height with Platform Raised
76 in
Overall Height with Platform Lowered
76 in
Minimum Lifting Height
4 1/2 in
Caster Wheel Dia.
5 in
Lifting Height Range
4 1/2 in to 59 in
Overall LxWxH
34 3/4 in x 24 5/8 in x 76 in
Base Outside Width
17 3/4 in

Details

Color
Blue, White
Load Capacity
440 lb
Item
Manual Platform Lift Trucks
Handle Type
Grip type
Assembled
Yes
Lift Mechanism
Chain/Cable
Base Legs Inside Dim.
15 in
Frame Material
Steel
Invertible Forks
No
Lift Base Style
Fixed Straddle
Powered By
Hand Winch
Base Legs Outside Dim.
17 7/8 in
Lift Mobility
Manual Lift, Manual Push
Caster Wheel Type
Tread on Core
Lift Control
Hand Winch
Load Center
9 3/8 in
Axle-Mounted Wheel Type
Tread on Core
Caster Wheel/Tread Material
Polyurethane
Non-Marking Casters/Wheels
Yes
Base Material
Steel
Caster Stem Type
Grip Neck
Frame Finish
Powder Coated
Non-Marking Axle-Mounted Wheels
Yes
Operation
Manual
Base Style
Fixed
Brake Type
Face Contact Brake
Wheel Configuration
(2) Swivel, (2) Swivel with Brake
Handle Material
Steel
Platform Material
Iron
Frame Type
Rounded Back
Caster Mounting Type
Plate

Description

Platform Lift Truck, Load Capacity 440 lb, Minimum Lifting Height 5 in, Maximum Lifting Height 59 in, Platform Length 18 1/2 in, Platform Width 23 3/4 in, Lift Control Hand Winch, Lift Mechanism Chain, Base Style Fixed, Base Inside Width 16 in, Base Outside Width 17 3/4 in, Frame Finish Powder Coated, Frame Type Rounded Back, Load Center 9 3/8 in, Overall Height with Platform Raised 76 in, Overall Length 33 in, Overall Width 23 3/4 in, Frame Material Steel, Platform Material Iron
