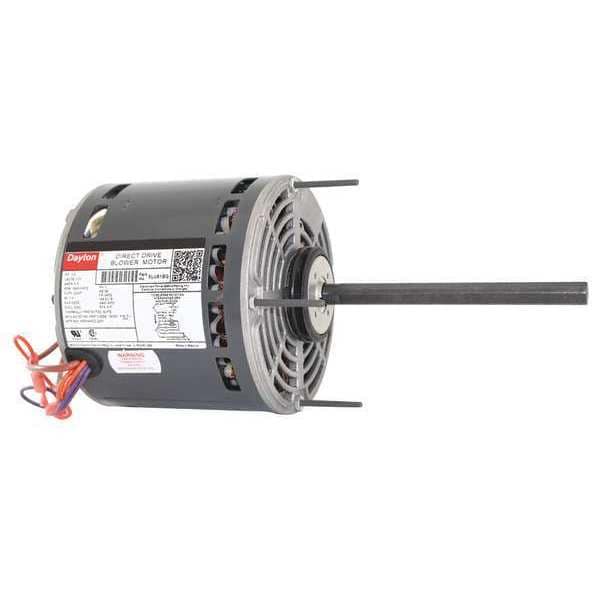

Motor, 1/2hp, D/D Blower

DAYTON| Zoro #: G2112397| Mfr #: 3LU81

$159.78 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2112397 Mfr #: 3LU81
Hz: 60Motor Service Factor: 1.00
Phase: 1Motor Sub Application: Direct Drive Fan/Blower
Motor Application: HVAC/RItem: Direct Drive Blower Motor
Motor Mounting Position: All AngleMotor Thermal Protection: Auto
Motor Design: Permanent Split CapacitorDuty: Continuous
Includes: Split Rings to Increase Ring Diameter to 2 1/2"Standards: UL Recognized (E37403), CSA Certified (258501)
Application: Blowers, Fans and Air CirculatorsShaft Dia.: 1/2"
Ins. Class: BBody Dia.: 5-5/8"
Nominal Efficiency: 73.30%Motor Bearings: Sleeve
Frame: 48YZMotor Shaft Rotation: CW/CCW
Voltage: 115Motor Shaft Design: Double-Flat
Shaft Length: 6"Motor Enclosure Design: Open Air-Over
Overall Length: 12-3/16"Resilient Ring Dia.: 2-1/4"
Motor Mounting Type: Ring/StudCapacitor Required: 2MDV9
No. of Speeds: 3Nameplate RPM: 1625
Bolt Circle Dia.: 5-1/8"Ring to Ring Center: 5-3/4"
HP: 1/2Max. Ambient Temp.: 40 Degrees C
Full Load Amps: 5.5Length Less Shaft: 6-3/16"
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/2 HP, 1625 Nameplate RPM, Voltage 115, 5.4 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 6-3/16 In., Overall Length 12-3/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In.

Restrictions and Compliance

*1 : California Proposition 65 : This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
*2 : California Proposition 65 : This product contains a chemical known to the State of California to cause cancer.
