Shop DAYTON

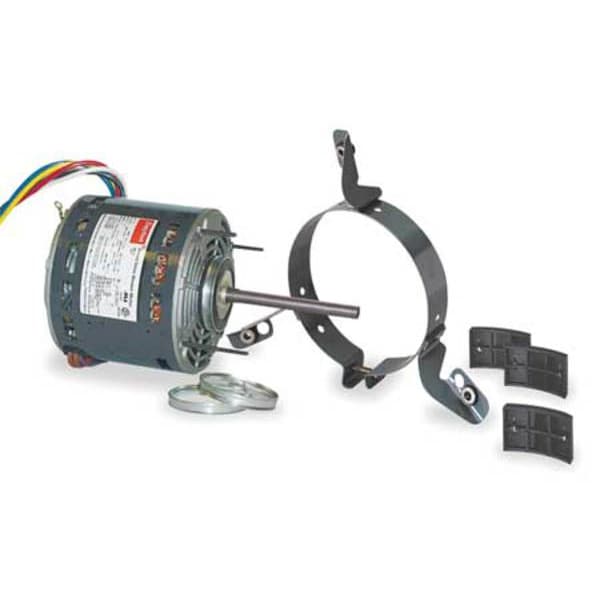

Motor, PSC, 1/2hp, 1075/3, 277 V, Ring/Stud

  • Mfr # 7E672

  • Zoro # G1361604

product price:
$
244.99
/ea
Free Shipping & Returns

Key Features

RPM Range
1,001-1,100
Voltage Compatibility
208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC
Ring to Ring Center
6 in
Duty
Continuous
No. of Speeds
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7E672
Zoro #
G1361604
UPC #
-
Country of Origin
China

Dimensions

Overall Length
12 13/32 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Shaft Length
6 in
Length Less Shaft
6 13/32 in
Frame Size
48YZ
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Wire Rope Length
12 13/32 in
Length
12 13/32 in

Details

RPM Range
1,001-1,100
Voltage Compatibility
208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC
Ring to Ring Center
6 in
Duty
Continuous
No. of Speeds
3
Motor Application
HVAC/R
Motor Bearings
Sleeve
Voltage
277V AC
Motor Mounting Position
All Angle
Item
Fan and Blower Motor
Full Load Amps
2.6 A
Nameplate RPM
1,075
Motor Thermal Protection
Auto
Frame
48YZ
HP
1/2
Hz
60 Hz
Application
Blowers, Fans and Air Circulators
Motor Sub Application
Direct Drive
Motor Design
Permanent Split Capacitor
Motor Mounting Type
Ring/Stud
Motor Enclosure Design
Open Air-Over
Motor Shaft Design
Double-Flat
Phase
Single
Ins. Class
B
Capacitor Required
Capacitor Not Included
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Mounting
Stud
Number of Speeds
3
Motor Enclosure Type
Open Air Over
Sub Application
General Purpose
Full Load Current @ 60 Hz
2.6 A
Insulation Class
B
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Double Flat
Mounting Position
All Angle
Drive Type
Direct Drive
Product Type
Fan and Blower Motor
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 277V AC, 2.6 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Shaft Dia. 1/2 in
