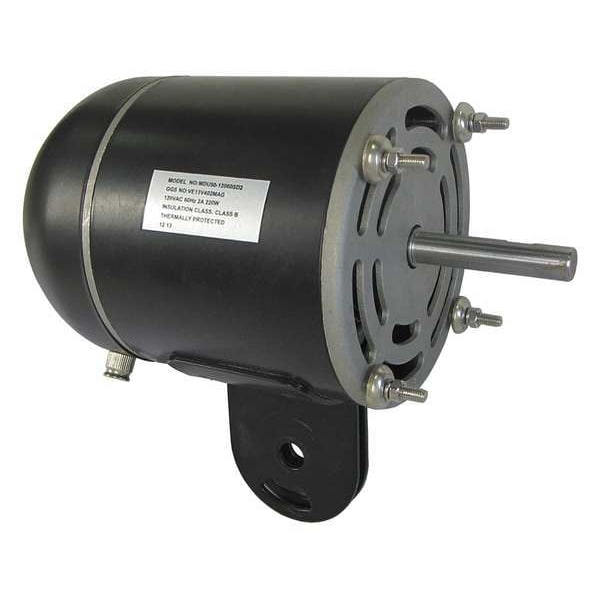

Dayton Motor Assembly, 1/5 hp VE6ALE6MAG - main

Motor Assembly, 1/5 hp

  • Mfr # VE6ALE6MAG

  • Zoro # G8180821

product price:  $177.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
6ALE6
Fits Brand
Dayton
For Use With
Grainger Item Number: 6ALE6
Shaft Length
170 mm
Efficiency Rating
Standard Efficiency (IE1)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VE6ALE6MAG
Zoro #
G8180821
UPC #
190735130476
Country of Origin
China

Dimensions

Shaft Length
170 mm
Bolt Circle Diameter
114 mm
Frame Size
Non-Standard
Body Diameter
124 mm
Shaft Diameter
12 mm
Length Less Shaft
4 1/2 in

Details

For Use With Mfr. Model Number
6ALE6
Fits Brand
Dayton
Item
Motor Assembly
For Use With
Grainger Item Number: 6ALE6
Efficiency Rating
Standard Efficiency (IE1)
Motor Design
Permanent Split Capacitor
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
1.8 A
Capacitor Required
Capacitor Included
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Interior
Compatible Manufacturer Part Number
6ALE6
Frame Material
Steel
Compatible Brand
Dayton
Frequency
60 Hz
Mounting Position
Horizontal
Product Type
Definite Purpose HVAC Motor
Manufacturers Warranty
1 yr
Duty
Continuous
Insulation Class
B
Bearing Type
Ball
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Phase
Single

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 hp HP, Nameplate RPM 1,080 RPM, Voltage 120V AC, Full Load Amps 1.8 A, Non-Standard Frame, OEM Replacement Brand Dayton, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
