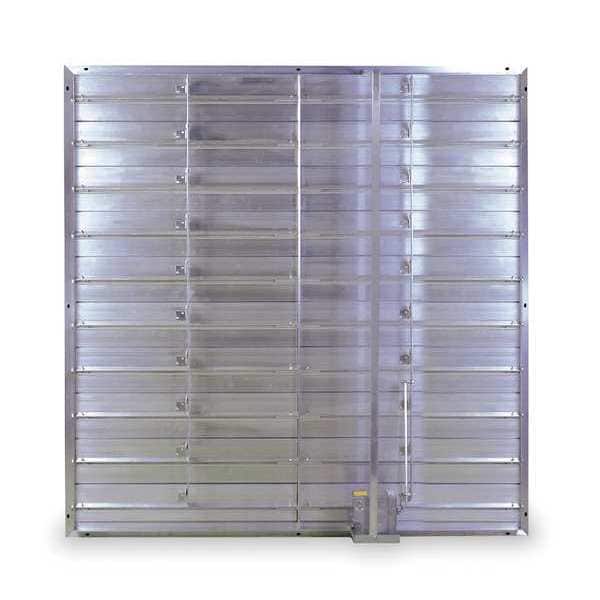

Mtrzd Damper, For Fan Dia. 60", 24-240V

Mfr # 3C189
Zoro # G2227285

1,084.99

Additional $155.00 delivery surcharge applies per item.

Key Features

For Fan Dia.

60 in

Voltage

24 to 240

Overall Square

63 in

Sq. Opening Required

61 in

Free Area

23.3 sq ft

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3C189
Zoro #: G2227285
UPC #: 190735280720
Country of Origin: United States

Dimensions

For Fan Dia.: 60 in
Flange Width: 1 1/2 in
Overall Width: 63 in
Overall Length: 12 3/4 in
Overall Height: 63 in
Overall Diameter: 63 in
Frame Material Thickness: 0.1 in
Rough Opening Diameter: 61 in
Rough Opening Length: 61 in
Rough Opening Width: 61 in
Blade Material Thickness: 0.1 in
Wire Rope Length: 12 3/4 in
Length: 12 3/4 in

Details

Item: 63"H-W 12.8"L Squ Alu Mtrzd Cntrl Dampr
Voltage: 24 to 240
Overall Square: 63 in
Sq. Opening Required: 61 in
Free Area: 23.3 sq ft
Frame Less Flange: 60 sq in
Motor Bracket Extension: 10 1/4 in
Hz: 50/60 Hz
For Use With: Intake or Exhaust Applications
Operation: Power Open, Spring Return
Material: Extruded Aluminum
Number of Panels: 2
Features: Frame Thickness is 0.125 in, Blade Thickness is 0.080 in
Mounting Position: Horizontal; Vertical
Standards: NEC; OSHA
Jamb Seal Material: Stainless Steel
Phase: 1
Damper Type: Dynamic
Counterbalanced: No
Full Load Current: 3 A
Flange Type: Reversed Flange
Includes Motor: Yes
Blade Type: Flat Blade
For Duct Shape: Square
Maximum Air Pressure: 4 in wg
Damper Finish: Mill Finish
Pressure Drop @ 1000 fpm (AMCA 5.2): 0.18 in wg
Closure Velocity Rating: 3,500 fpm
Frame Material: Aluminum
Rough Opening Shape: Square
Blade Orientation: Parallel Blades
Nameplate Voltage: 24V DC; 240V AC
Airflow Direction: Horizontal; Vertical
Damper Application: Motorized
Series: AMD-SP
Blade Material: Aluminum
Maximum Air Velocity: 3500 fpm
Closure Pressure Rating: 4 in wc
Switch Action: Normally Open
Maximum Temperature Rating: 122 Degrees F
Frequency: 50/60 Hz
Axle Material: Aluminum
Bushing Material: Nylon

Description

63 In.H-W 12.8 In.L Squ Alu Mtrzd Cntrl Dampr, For Nominal Duct Diameter Not Applicable, Damper Application Motorized, Number of Panels 2, Overall Height 63 in, Overall Length 12 3/4 in, Rough Opening Shape Square, For Duct Shape Square, Overall Width 63 in, Frame Material Thickness 0.1 in, Blade Material Aluminum, Maximum Air Pressure 4 in wg, Overall Diameter 63 in, Rough Opening Length 61 in, Rough Opening Width 61 in, Damper Type Dynamic, Maximum Air Velocity 3500 fpm
