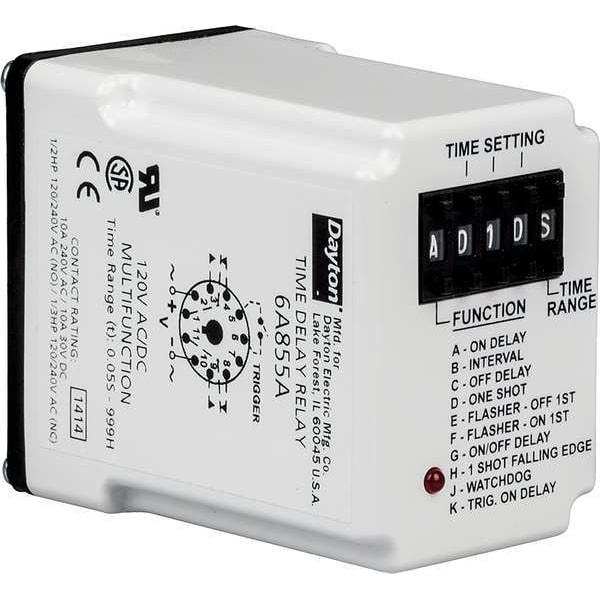

Multifunction Time Delay Relay, Octal, Multi Function, 10 Functions 24V AC/DC, DPDT

Mfr # 5DRA3
Zoro # G3176783

CAD Available

139.99

Free Shipping & Returns

Key Features

CAD Drawing

Delay Function

Multi Function

Number of Delay Functions

Minimum Time Setting

0.05 sec

Maximum Time Setting

999 hr

Base Shape

Octal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 5DRA3
Zoro #: G3176783
UPC #: 190735342770
Country of Origin: United States

Dimensions

Overall Height - Relay: 3 in
Body Height: 2.9 in
Overall Depth: 3 in
Body Width: 2.4 in
Body Depth: 1.7 in

Details

Item: Multifunction Time Delay Relay
Delay Function: Multi Function
Number of Delay Functions: 10
Minimum Time Setting: 0.05 sec
Maximum Time Setting: 999 hr
Base Shape: Octal
Number of Pins: 11
Coil Voltage: 24V AC/DC
Current Rating: 10 A
Contact Form: DPDT
Contact Rating (AC): 10 A @ 240V AC
Contact Rating (DC): 10 A @ 30V
Socket: 1EGP2, 1EGP4, 6X156
Coil Rating: 3VA
Socket Code: B
Contact Amp Rating (Resistive): 10A
Contact Material: Silver Nickel
Number of Functions: 10
Operating Functions: 1, 2, 3, 4, 6, 7, 9, 11
Status Indicator: LED
Adjustment Method: Push Button, Rotary Knob
Standards: CE Certified, CSA Certified, UL Listed, UL Socket
Electrical Connection: Socket
Input Voltage: 24V AC/DC
Electrical Operating Durability: 100,000
IP Rating: IP20
Power Consumption: 3 VA
Sealing: Enclosed
Reset Method: Time-Limit Reset
Mounting Style: Plug-In
Mechanical Operating Durability: 10,000,000
Maximum Operating Temperature: 149 Degrees F
Operating Time Accuracy: +1% +50ms
Frequency: 50/60 Hz
Minimum Operating Temperature: -18 Degrees F
CAD Available: Yes

Description

Multi-Function Time Delay Relay, Adjustment Method Push Button, Rotary Knob, Base Shape Octal, Coil Voltage 24V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 10, Delay Function Multi Function, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 24V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 999 hr, Number of Pins 11, Sealing Enclosed
