Dayton Pedestal Fan Motor, 1/2 hp GGS_47307 - main

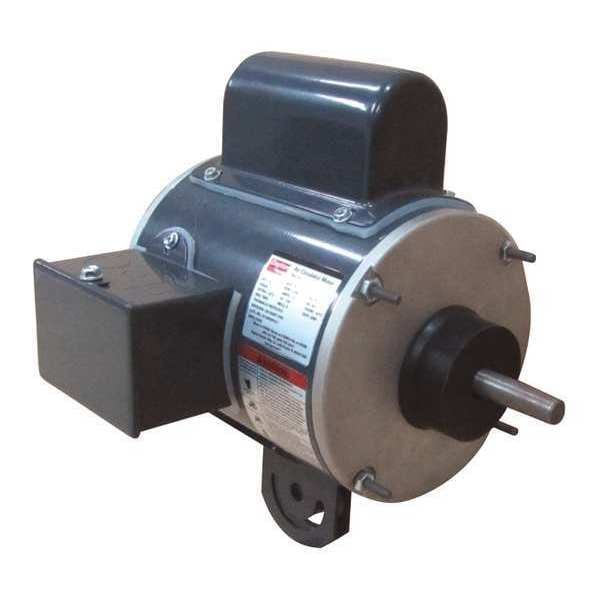

Pedestal Fan Motor, 1/2 hp

  • Mfr # GGS_47307

  • Zoro # G6299049

product price: $283.99
/ea
Free Shipping & Returns

Key Features

For Use With
HVAC/R
Voltage
277V AC
Hz
60
Motor Thermal Protection
None
Motor Design
Permanent Split Capacitor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GGS_47307
Zoro #
G6299049
UPC #
190735957387
Country of Origin
China

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5 11/16 in
Shaft Length
3 in
Overall Length
9 5/8 in

Details

Item
Pedestal Fan Motor
For Use With
HVAC/R
Voltage
277V AC
Hz
60
Motor Thermal Protection
None
Motor Design
Permanent Split Capacitor
Application
Industrial Spot Cooling
HP
1/2
Motor Service Factor
1
Motor Enclosure Design
Totally Enclosed Air-Over
Duty
Continuous
Standards
UL/CUL 507
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Full Load Amps
1.80
Motor Bearings
Ball
RPM Range
1,001-1,100
Ins. Class
B
Motor Shaft Rotation
CWSE
Phase
Single
10 Ft. Cord and Pull Chain Switch
Yes
Nameplate RPM
1,100
Ambient Temperature
104 Degrees F
Motor Application
HVAC/R
Frame
48YZ
No. of Speeds
1
Motor Sub Application
Pedestal Fan
Motor Mounting Type
Yoke
Duty Cycle
Continuous

Description

Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 277V AC, 1.8 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Shaft Length 3 in, Shaft Dia. 1/2 in
