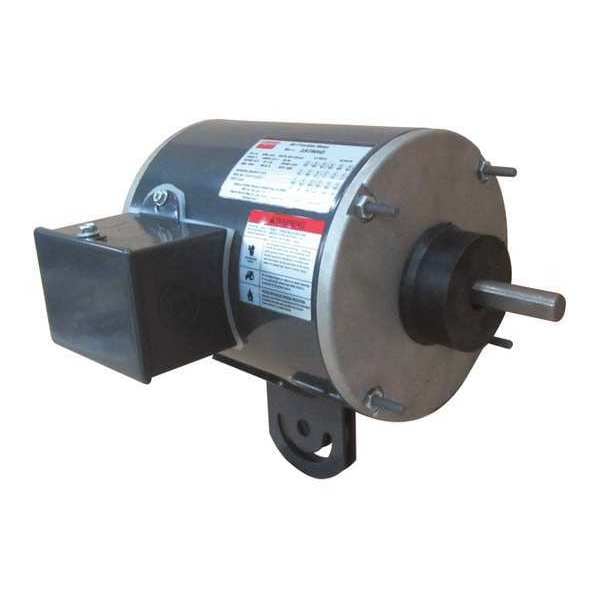

Dayton Pedestal Fan Motor, 1/2 hp GGS_47308 - main

Pedestal Fan Motor, 1/2 hp

  • Mfr # GGS_47308

  • Zoro # G6299030

product price: $278.99
/ea
Free Shipping & Returns

Key Features

For Use With
HVAC/R
Voltage
208-230/460V AC
Motor Design
3-Phase
Phase
Three
Full Load Amps
2.2-2.2/1.10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GGS_47308
Zoro #
G6299030
UPC #
190735957370
Country of Origin
China

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5 11/16 in
Shaft Length
3 in
Overall Length
9 5/8 in

Details

Item
Pedestal Fan Motor
For Use With
HVAC/R
Voltage
208-230/460V AC
Motor Design
3-Phase
Phase
Three
Full Load Amps
2.2-2.2/1.10
Frame
48YZ
Application
Industrial Spot Cooling
Motor Bearings
Ball
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/2
Standards
UL/CUL 507
Hz
60
Nameplate RPM
1,100
Motor Service Factor
1
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Thermal Protection
None
Ins. Class
B
RPM Range
1,001-1,100
Motor Application
HVAC/R
10 Ft. Cord and Pull Chain Switch
Yes
Duty
Continuous
Motor Sub Application
Pedestal Fan
Motor Shaft Rotation
CWSE
No. of Speeds
1
Ambient Temperature
104 Degrees F
Motor Mounting Type
Yoke
Duty Cycle
Continuous

Description

Pedestal Fan Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 1,100, No. of Speeds 1, Voltage 208-230/460V AC, 2.2-2.2/1.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Shaft Length 3 in, Shaft Dia. 1/2 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
