  9. Pedestal Pump, Cast Iron, 1 HP

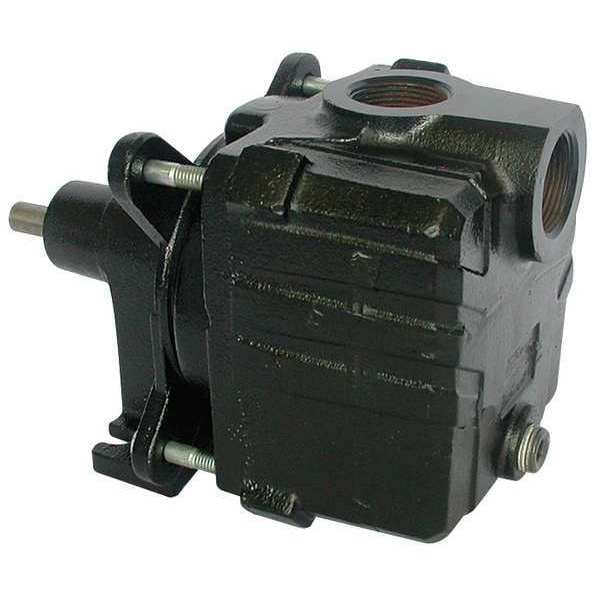

Dayton Pedestal Pump, Cast Iron, 1 HP 5PXX7 - main

Pedestal Pump, Cast Iron, 1 HP

  • Mfr # 5PXX7

  • Zoro # G1682947

product price: $403.99
/ea
Free Shipping & Returns

Key Features

HP Required
1 hp
Inlet
1 1/4 in
Outlet
1 1/4 in
Wetted Materials
Cast Iron, Carbon/Ceramic, Buna N, Stainless Steel, Carbon Steel
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5PXX7
Zoro #
G1682947
UPC #
190735350256
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Width
6 5/8 in
Max. Dia. Solids
3/8
Height
7 1/4 in
Length
10 7/8 in
Shaft Size
5/8 in
Overall Height
7.25 in
Overall Length
10.88 in
Overall Width
6.63 in
Compatible Intake Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.38 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Sized for Horsepower
1 hp
Shaft Outside Diameter
5/8 in

Details

Item
Pedestal Pump
HP Required
1 hp
Inlet
1 1/4 in
Outlet
1 1/4 in
Wetted Materials
Cast Iron, Carbon/Ceramic, Buna N, Stainless Steel, Carbon Steel
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Inlet (In.)
1 1/4 in
Best Efficiency GPM @ Head
14 @ 36 ft
Max. Specific Gravity
1
GPM of Water @ 20 Ft. of Head
28
Duty
Continuous
Max. Case Pressure
75 psi
GPM of Water @ 10 Ft. of Head
38
Includes
Manual
GPM of Water @ 25 Ft. of Head
21
Inlet Pressure
49 psi
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
Impeller Type
Semi-Open
GPM of Water @ 40 Ft. of Head
0
Housing Material
Cast-iron
Impeller Material
Cast Iron
GPM of Water @ 30 Ft. of Head
15
GPM of Water @ 15 Ft. of Head
34
Use with Frame Number
56
Bearing Type
Sealed Ball
Seal Type
Mechanical Seal
Shaft Material
Carbon Steel
Feet of Head (Minimum)
10 ft
Best Efficiency Head
36 ft
Maximum Flow Rate
38 gpm
Impeller Design
Semi-Open
Priming
Self-Priming
Best Efficiency Flow
14 gpm
Maximum Feet of Head
40 ft
Specific Gravity (Maximum)
1
Flow Rate @ 40 ft of Head (Maximum)
0 gpm
Intake Type
NPT
Pump Housing Material
Cast Iron
Duty Cycle
Continuous
Wetted Material
Buna-N, Carbon, Carbon Steel, Cast Iron, Ceramic, Stainless Steel
NPSHr
49 psi
For Use With Potable Systems
No
Compatible with Media Type
Non-Flammable Liquids
Flow Rate @ 10 ft of Head (Maximum)
38 gpm
Pumping Application
High-Volume Industrial and Commercial Applications Including Liquid and Chemical Transfer
Flow Rate @ 15 ft of Head (Maximum)
34 gpm
Suction Lift (Maximum)
25 ft
Flow Rate @ 20 ft of Head (Maximum)
28 gpm
Flow Rate @ 5 ft of Head (Maximum)
0 gpm
Flow Rate @ 30 ft of Head (Maximum)
15 gpm
Compatible Motor Frame
56

Description

Pedestal Pump, Pump Housing Material Cast Iron, Sized for Horsepower 1 hp, Flow Rate @ 10 ft of Head (Maximum) 38 gpm, Flow Rate @ 20 ft of Head (Maximum) 28 gpm, Flow Rate @ 30 ft of Head (Maximum) 15 gpm, Flow Rate @ 40 ft of Head (Maximum) 0 gpm, Maximum Feet of Head 40 ft, Intake Type NPT, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Suction Lift (Maximum) 25 ft, Shaft Outside Diameter 5/8 in, Priming Self-Priming, NPSHr 49 psi, Best Efficiency Flow 14 gpm

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
