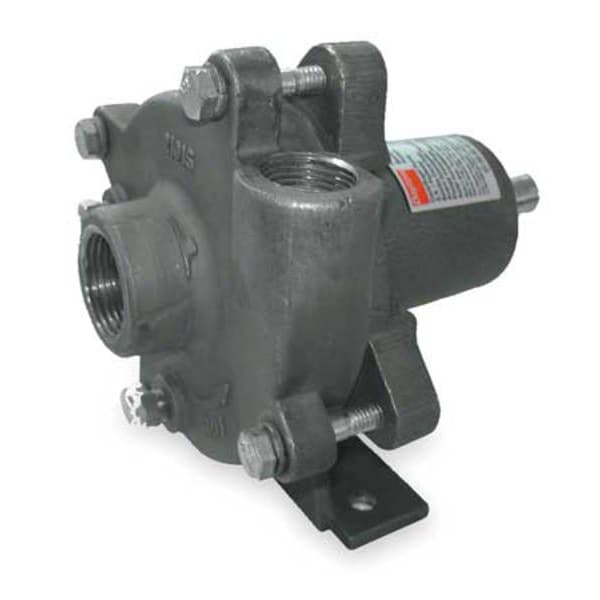

Dayton Pedestal Pump, Centrifugal, HP Req. 1/3 2ZWY8 - main

Pedestal Pump, Centrifugal, HP Req. 1/3

  • Mfr # 2ZWY8

  • Zoro # G1469386

product price: $579.99
/ea
Free Shipping & Returns

Key Features

HP Required
1/3 hp
Inlet (In.)
1 in
Outlet
3/4 in
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency GPM @ Head
30 @ 26 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2ZWY8
Zoro #
G1469386
UPC #
190735242278
Country of Origin
India

Dimensions

Width
5 3/4 in
Height
6 3/8 in
Manufacturers Warranty Length
1 yr
Length
6 5/8 in
Overall Width
5.75 in
Overall Height
6.38 in
Overall Length
6.63 in
Manufacturer Warranty Length
1 yr
Shaft Outside Diameter
5/8 in
Sized for Horsepower
1/3 hp
Compatible Discharge Pipe Size
3/4 in
Compatible Intake Pipe Size
1 in

Details

HP Required
1/3 hp
Inlet (In.)
1 in
Outlet
3/4 in
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency GPM @ Head
30 @ 26 ft
GPM of Water @ 15 Ft. of Head
37
Impeller Type
Semi Open
GPM of Water @ 20 Ft. of Head
34
Seal Material
Viton
Impeller Material
Stainless Steel
GPM of Water @ 30 Ft. of Head
25
Port Rotation
4 Position
Max. Specific Gravity
1.0
For Use With
Nonflammable and Nonabrasive Liquids
GPM of Water @ 40 Ft. of Head
10
Inlet
1 in
Inlet Pressure
200 psi
Max. Pressure
19 psi
Includes
Mounting Base, Manual, No Motor or Drive Couplers
Max. Case Pressure
200 psi
GPM of Water @ 10 Ft. of Head
41
Item
Pedestal Pump
Duty
Continuous
Housing Material
Stainless steel
Bearing Type
Ball
NPSHr
200 psi
For Use With Potable Systems
No
Pump Housing Material
Stainless Steel
Maximum Feet of Head
44 ft
Minimum Media Temperature
40 Degrees F
Feet of Head (Minimum)
10 ft
Maximum Media Temperature
200 Degrees F
Maximum Flow Rate
41 gpm
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Shaft Material
304 Stainless Steel
Impeller Design
Semi-Open
Intake Type
NPT
Pumping Application
Aggressive Liquid Applications, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Purpose Pumping, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Transfer of Liquids, Utility, Water Circulation
Specific Gravity (Maximum)
1
Minimum Flow Rate
10 gpm
Discharge Type
NPT
Flow Rate @ 15 ft of Head (Maximum)
37 gpm
Duty Cycle
Continuous
Seal Type
Mechanical
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Best Efficiency Flow
30 gpm
Best Efficiency Head
26 ft
Phase
Three
Flow Rate @ 10 ft of Head (Maximum)
41 gpm
Flow Rate @ 20 ft of Head (Maximum)
34 gpm
Priming
Manual
Flow Rate @ 30 ft of Head (Maximum)
25 gpm
System Pressure (Maximum)
19 psi
Flow Rate @ 40 ft of Head (Maximum)
10 gpm

Description

Pedestal Pump, Pump Housing Material Stainless Steel, Sized for Horsepower 1/3 hp, Flow Rate @ 10 ft of Head (Maximum) 41 gpm, Flow Rate @ 20 ft of Head (Maximum) 34 gpm, Flow Rate @ 30 ft of Head (Maximum) 25 gpm, Flow Rate @ 40 ft of Head (Maximum) 10 gpm, Maximum Feet of Head 44 ft, Discharge Type NPT, Intake Type NPT, Compatible Intake Pipe Size 1 in, Compatible Discharge Pipe Size 3/4 in, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 5/8 in, Priming Manual, NPSHr 200 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
