Shop DAYTON

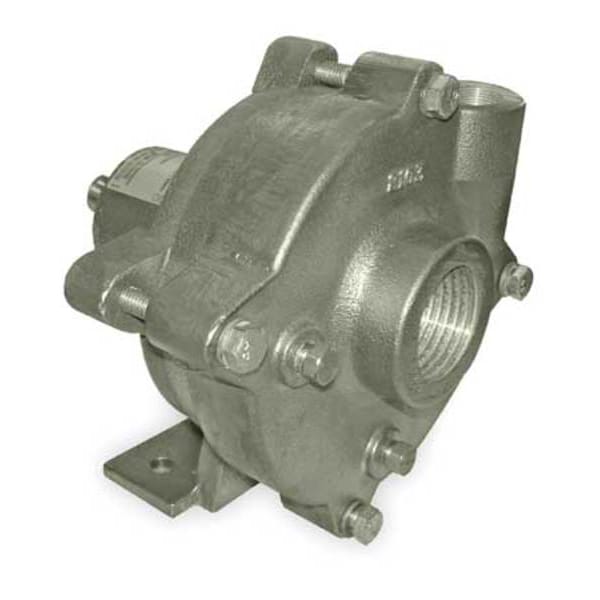

Pedestal Pump, Centrifugal, HP Req. 2

  • Mfr # 2ZWZ4

  • Zoro # G1352565

product price:  $725.99
/ea
Free Shipping & Returns

Key Features

HP Required
2 hp
Inlet (In.)
1 1/2 in
Outlet
1-1/4 in
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency GPM @ Head
70 @ 52 ft
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2ZWZ4
Zoro #
G1352565
UPC #
190735242322
Country of Origin
India

Dimensions

Width
7 1/2 in
Height
7 1/4 in
Manufacturers Warranty Length
1 yr
Length
7 3/4 in
Overall Height
7.25 in
Overall Width
7.5 in
Overall Length
7.75 in
Compatible Discharge Pipe Size
1 1/4 in
Compatible Intake Pipe Size
1 1/2 in
Shaft Outside Diameter
5/8 in
Manufacturer Warranty Length
1 yr
Sized for Horsepower
2 hp
Impeller Diameter
116 mm
For Motor Frame Size
56C, 56J
Discharge Diameter
1 1/4 in
Inlet Diameter
1 1/2 in
Solid Diameter (Maximum)
0.39 in

Details

HP Required
2 hp
Inlet (In.)
1 1/2 in
Outlet
1-1/4 in
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency GPM @ Head
70 @ 52 ft
Impeller Material
Stainless Steel
GPM of Water @ 10 Ft. of Head
122
For Use With
Nonflammable and Nonabrasive Liquids
GPM of Water @ 70 Ft. of Head
10
Seal Material
Viton
Includes
Mounting Base, Manual, No Motor or Drive Couplers
Impeller Type
Semi Open
GPM of Water @ 20 Ft. of Head
109
GPM of Water @ 60 Ft. of Head
46
GPM of Water @ 40 Ft. of Head
84
Duty
Continuous
Max. Specific Gravity
1.0
Max. Case Pressure
200 psi
GPM of Water @ 50 Ft. of Head
68
GPM of Water @ 15 Ft. of Head
115
Port Rotation
4 Position
Housing Material
Stainless steel
Bearing Type
Ball
Inlet Pressure
200 psi
Inlet
1-1/2 in
GPM of Water @ 30 Ft. of Head
98
Item
Pedestal Pump
Max. Pressure
31.2 psi
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Flow Rate @ 90 ft of Head (Maximum)
0 gpm
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency Head
52 ft
Best Efficiency Flow
70 gpm
Flow Rate @ 15 ft of Head (Maximum)
115 gpm
Duty Cycle
Continuous
Seal Type
Mechanical
Flow Rate @ 50 ft of Head (Maximum)
68 gpm
Flow Rate @ 70 ft of Head (Maximum)
10 gpm
For Use With Potable Systems
No
NPSHr
200 psi
Flow Rate @ 80 ft of Head (Maximum)
0 gpm
Maximum Media Temperature
200 Degrees F
Minimum Flow Rate
10 gpm
Flow Rate @ 10 ft of Head (Maximum)
122 gpm
Priming
Manual
Specific Gravity (Maximum)
1
Flow Rate @ 20 ft of Head (Maximum)
109 gpm
Maximum Flow Rate
122 gpm
Maximum Feet of Head
72 ft
Intake Type
NPT
Pump Housing Material
Stainless Steel
Impeller Design
Semi-Open
Flow Rate @ 30 ft of Head (Maximum)
98 gpm
Flow Rate @ 60 ft of Head (Maximum)
46 gpm
Phase
Three
Discharge Type
NPT
Minimum Media Temperature
40 Degrees F
System Pressure (Maximum)
31.2 psi
Feet of Head (Minimum)
10 ft
Flow Rate @ 40 ft of Head (Maximum)
84 gpm
Shaft Material
304 Stainless Steel
Pumping Application
Boiler Feed, Booster Services, Chemical Transfer, Condensate Return, Cooling and Heat Transfer, Filtration, Decorative Water, Irrigation, Jockey Pump Services, Spraying Systems, Liquid Transfer, Water Circulation
Flow Rate (Minimum)
10 gpm
Flow Rate (Maximum)
122 gpm
Feet of Head (Maximum)
72 ft
Pump Drive Configuration
Bare Shaft
Shut Off Pressure - Maximum
31.2 psi
Chemical Compatibility
Non-Abrasive Liquids, Non-Flammable Liquids
Media Temperature - Minimum
40 Degrees F
Pump Shaft Rotation Direction
CW
Shaft Seal Type
Mechanical
Number of Stages
1
Viscosity (Maximum)
100 SUS
Product Type
Pedestal Pump
Shaft Seal Material
FKM
Motor Speed (Maximum)
3,450 RPM
Media Temperature - Maximum
200 Degrees F
Discharge Rotation Increments
0 Degrees

Description

Pedestal Pump, Pump Housing Material Stainless Steel, Sized for Horsepower 2 hp, Flow Rate @ 10 ft of Head (Maximum) 122 gpm, Flow Rate @ 20 ft of Head (Maximum) 109 gpm, Flow Rate @ 30 ft of Head (Maximum) 98 gpm, Flow Rate @ 40 ft of Head (Maximum) 84 gpm, Maximum Feet of Head 72 ft, Discharge Type NPT, Intake Type NPT, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/4 in, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 5/8 in, Priming Manual
