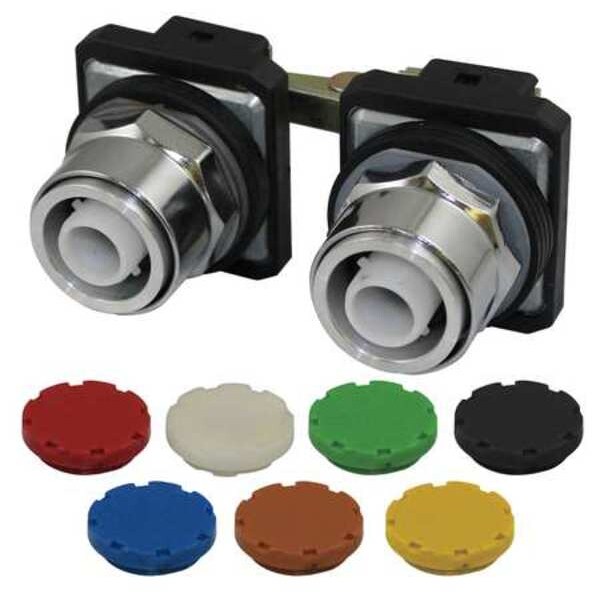

Dayton Pendant Push Button, 30 mm, Multi 30G344 - main

Pendant Push Button, 30 mm, Multi

  • Mfr # 30G344

  • Zoro # G4986292

product price: $71.15
/ea

Key Features

Push Button Style
Extended
Action
Maintained / Maintained
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30G344
Zoro #
G4986292
UPC #
190735246443
Country of Origin
China

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Overall Depth
1.97 in
Overall Height
3.11 in
Overall Width
3.88 in
Manufacturer Warranty Length
1 yr

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Maintained / Maintained
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Head Color
Multi
Head Material
Plastic
Terminal Connection
Pressure Plate
Standards
CE, cULus
Number of Operators
2
Mechanical Interlock
Yes
Material
Chrome Plate, Zinc Die-Cast
NEMA Rating
13, 4
Type of Operator
Full Guard
Color
Multi
IP Rating
IP65
Bezel Material
Chrome Die Cast Aluminum
Shop By
Closeouts
Lamp Module Type
No Lamp Module Included
Series
Dayton
Number of Indicator Lights
0
Product Type
Push Button Operators
Resistance Properties
Non-Magnetic
Operator Material
Plastic
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
13, 4

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Full Guard, Basic Material Metal, Head Material Plastic, Bezel Material Chrome Die Cast Aluminum, Color Multi, NEMA Rating 13, 4, IP Rating IP65, Legend Not Applicable, Standards CE, cULus, Features Not Applicable
