  11. Pillow Block, 1.000 In Bore, 6.000 In L

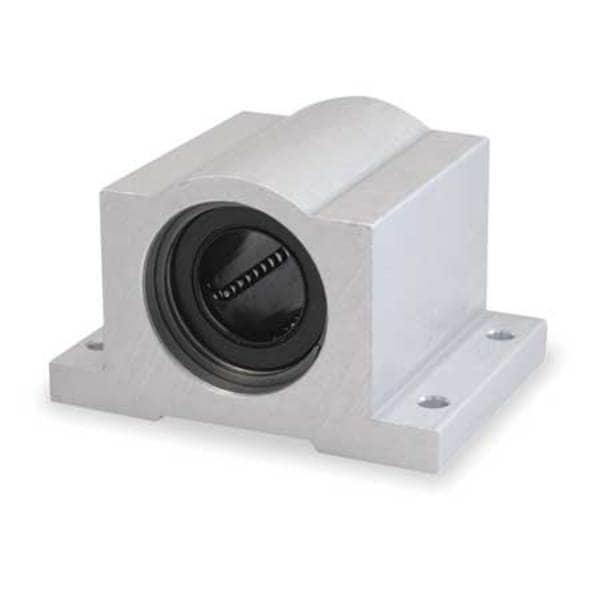

Dayton Pillow Block, 1.000 In Bore, 6.000 In L 2CNP7 - main

Pillow Block, 1.000 In Bore, 6.000 In L

  • Mfr # 2CNP7

  • Zoro # G1835066

product price: $217.99
/ea
Free Shipping & Returns

Key Features

Bore Dia. (In.)
1 in
Material
Stainless Steel/Polymer Cage
Static Load Capacity (N)
706 lbf
For Use With
Linear Motion Shafts
Finish
Standard Anodized
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2CNP7
Zoro #
G1835066
UPC #
190735217740
Country of Origin
United States

Dimensions

Bore Dia. (In.)
1 in
Mounting Hole Dia. (mm)
0.21875 in
Overall Length (In.)
6 in
Dimension F1
1.75 in
Dimension D
2.188 in
Bolt Size
#10
Overall Height (In.)
2 3/16 in
Dimension A
1.187 in
Dimension H
#10
Dimension J
0.375 in
Dimension d
2.188 in
Flange Thickness (In.)
0.375 in
Dimension F
4.5 in
Dimension H1
7/32
Body Width (In.)
2.375 in
Dimension C
6 in
Dimension K
1.938 in
Dimension G
2.375 in
Overall Width (In.)
3.25 in
Dimension E
2.875 in
Dimension P
1.671 in
Mounting Hole Dia. (In.)
0.2188 in
Dimension B
3.25 in
Flange Thickness
0.375 in
Inside Dia.
1 in
Length (In.)
6 in
Dimension a
1.187 in
Flange Width
3.25 in
Overall Length
6 in
Overall Height
2 1/4 in
Body Width
2.375 in
Inside Diameter
1 in
Mounting Hole Diameter
0.218 in

Details

Item
Linear Pillow Block Bearing
Material
Stainless Steel/Polymer Cage
Static Load Capacity (N)
706 lbf
For Use With
Linear Motion Shafts
Finish
Standard Anodized
Locking Type
Retaining Ring
Temp. Range (F)
0 - 176
Steady State Speed
7 fps
Color
Black, Silver
Dynamic Load Capacity (Lb.)
440 lb
Lubrication
No Lubrication System
Type
Closed Pillow Block
Bearing Type
Ball
Dynamic Load Capacity (N)
440 lbf
Retaining Ring
Eaton
Static Load Capacity (Lb.)
706 lb
Mounting Surface to Shaft Center (In.)
1.188 in
Self-Alignment
Not Self-Aligning
Series
Dayton
Housing Style
Twin
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
176 Degrees F
System of Measurement
Inch
Static Load Capacity
706 lbf
Dynamic Load Capacity
440 lbf
Mounting Surface to Shaft Center
1.188 in
Pillow Block Type
Closed

Description

Linear Pillow Block Bearing, System of Measurement Inch, Inside Diameter 1 in, Overall Length 6 in, Self-Alignment Not Self-Aligning, Material Stainless Steel/Polymer Cage, Static Load Capacity 706 lbf, Dynamic Load Capacity 440 lbf, Steady State Speed 7 fps, Series Dayton, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -4 Degrees F, Housing Style Twin, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size #10, Finish Standard Anodized
