  11. Pillow Block, 2.000 In Bore, 4.750 In L

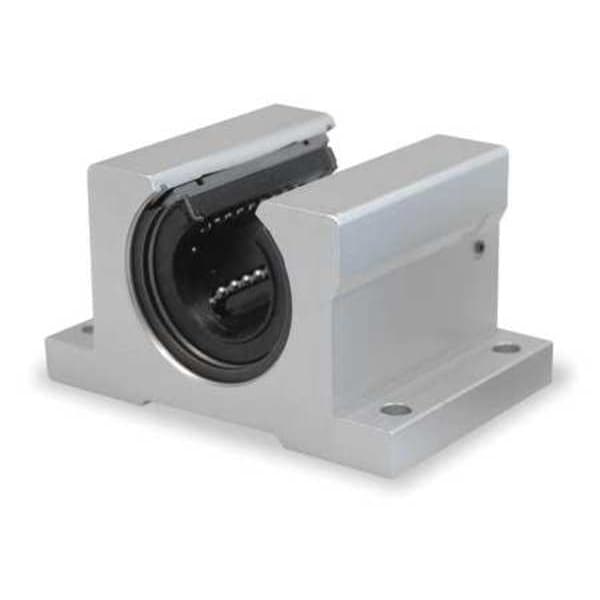

Dayton Pillow Block, 2.000 In Bore, 4.750 In L 2CNP3 - main

Pillow Block, 2.000 In Bore, 4.750 In L

  • Mfr # 2CNP3

  • Zoro # G0952935

product price: $447.99
/ea
Free Shipping & Returns

Key Features

Bore Dia. (In.)
2 in
Material
Stainless Steel/Polymer Cage
Type
Open Pillow Block
Mounting Surface to Shaft Center (In.)
2.125 in
Dimension G
4.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2CNP3
Zoro #
G0952935
UPC #
190735217726
Country of Origin
United States

Dimensions

Bore Dia. (In.)
2 in
Dimension G
4.5 in
Dimension J
0.625 in
Bolt Size
3/8 in
Overall Width (In.)
6 in
Dimension K
3.625 in
Dimension B
6 in
Dimension F
3.25 in
Slot Width (In.)
1 in
Dimension H1
13/32
Flange Thickness (In.)
0.625 in
Mounting Hole Dia. (In.)
0.4063 in
Dimension E
5.25 in
Dimension M (In.)
4 in
Dimension H
0.375 in
Body Width (In.)
4.5 in
Overall Length (In.)
4.75 in
Mounting Hole Dia. (mm)
0.40625 in
Dimension O
0.103 in
Dimension P
3.182 in
Dimension C
4.75 in
Overall Height (In.)
3.625 in
Dimension A
2.125 in
Length (In.)
4 3/4 in
Inside Dia.
2 in
Dimension a
2.125 in
Flange Thickness
0.625 in
Flange Width
6 in
Overall Height
3 5/8 in
Overall Length
4 3/4 in
Body Width
4.5 in
Mounting Hole Diameter
0.406 in
Inside Diameter
2 in
Slot Width
1 in

Details

Item
Linear Pillow Block Bearing
Material
Stainless Steel/Polymer Cage
Type
Open Pillow Block
Mounting Surface to Shaft Center (In.)
2.125 in
Locking Type
Roll Pin
Self-Alignment
Not Self-Aligning
Dynamic Load Capacity (Lb.)
859 lb
Steady State Speed
7 fps
Temp. Range (F)
0 - 176
Static Load Capacity (N)
1,785 lbf
Bearing Type
Ball
Finish
Standard Anodized
Static Load Capacity (Lb.)
1,785 lb
For Use With
Support and Feather Rails
Lubrication
No Lubrication System
Retaining Ring
Eaton
Color
Black, Silver
Dynamic Load Capacity (N)
859 lbf
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
176 Degrees F
System of Measurement
Inch
Housing Style
Single
Series
Dayton
Dynamic Load Capacity
859 lbf
Mounting Surface to Shaft Center
2.125 in
Static Load Capacity
1,785 lbf
Pillow Block Type
Open

Description

Linear Pillow Block Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 4 3/4 in, Self-Alignment Not Self-Aligning, Material Stainless Steel/Polymer Cage, Static Load Capacity 1,785 lbf, Dynamic Load Capacity 859 lbf, Steady State Speed 7 fps, Series Dayton, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -4 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Roll Pin, Bolt Size 3/8 in, Finish Standard Anodized
