  11. Pillow Block, 2.000 In Bore, 5.000 In L

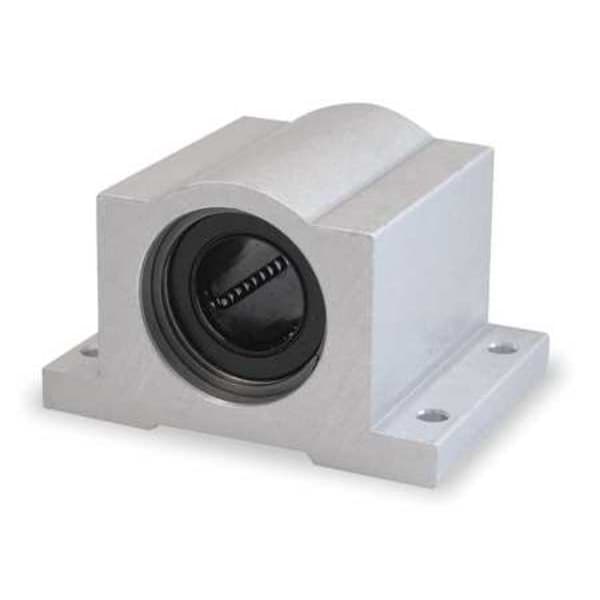

Dayton Pillow Block, 2.000 In Bore, 5.000 In L 2CNN6 - main

Pillow Block, 2.000 In Bore, 5.000 In L

  • Mfr # 2CNN6

  • Zoro # G2771395

product price: $369.99
/ea
Free Shipping & Returns

Key Features

Bore Dia. (In.)
2 in
Material
Stainless Steel/Polymer Cage
Mounting Hole Dia. (mm)
0.40625 in
Mounting Surface to Shaft Center (In.)
2.125 in
Temp. Range (F)
0 - 176
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2CNN6
Zoro #
G2771395
UPC #
190735217665
Country of Origin
United States

Dimensions

Bore Dia. (In.)
2 in
Mounting Hole Dia. (mm)
0.40625 in
Dimension F
3.25 in
Dimension D
4.063 in
Dimension B
6 in
Dimension C
5 in
Dimension d
4.063 in
Dimension O
0.103 in
Dimension H1
13/32
Dimension P
3.182 in
Body Width (In.)
4.5 in
Flange Thickness (In.)
0.625 in
Bolt Size
3/8 in
Dimension M (In.)
4 in
Dimension K
3.625 in
Dimension H
0.375 in
Overall Length (In.)
5 in
Dimension J
0.625 in
Dimension G
4.5 in
Overall Height (In.)
4 1/16 in
Dimension A
2.125 in
Overall Width (In.)
6 in
Dimension E
5.25 in
Mounting Hole Dia. (In.)
0.4063 in
Inside Dia.
2 in
Flange Width
6 in
Length (In.)
5 in
Flange Thickness
0.625 in
Dimension a
2.125 in
Overall Length
5 in
Overall Height
4 1/8 in
Body Width
4.5 in
Mounting Hole Diameter
0.406 in
Inside Diameter
2 in

Details

Item
Linear Pillow Block Bearing
Material
Stainless Steel/Polymer Cage
Mounting Surface to Shaft Center (In.)
2.125 in
Temp. Range (F)
0 - 176
Color
Black, Silver
Static Load Capacity (Lb.)
1,785 lb
For Use With
Linear Motion Shafts
Static Load Capacity (N)
1,785 lbf
Finish
Standard Anodized
Dynamic Load Capacity (N)
859 lbf
Steady State Speed
7 fps
Dynamic Load Capacity (Lb.)
859 lb
Type
Closed Pillow Block
Locking Type
Retaining Ring
Lubrication
No Lubrication System
Bearing Type
Ball
Self-Alignment
Not Self-Aligning
Retaining Ring
Eaton
Series
Dayton
Minimum Operating Temperature
-4 Degrees F
System of Measurement
Inch
Maximum Operating Temperature
176 Degrees F
Housing Style
Single
Mounting Surface to Shaft Center
2.125 in
Dynamic Load Capacity
859 lbf
Static Load Capacity
1,785 lbf
Pillow Block Type
Closed

Description

Linear Pillow Block Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 5 in, Self-Alignment Not Self-Aligning, Material Stainless Steel/Polymer Cage, Static Load Capacity 1,785 lbf, Dynamic Load Capacity 859 lbf, Steady State Speed 7 fps, Series Dayton, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -4 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size 3/8 in, Finish Standard Anodized
