Dayton

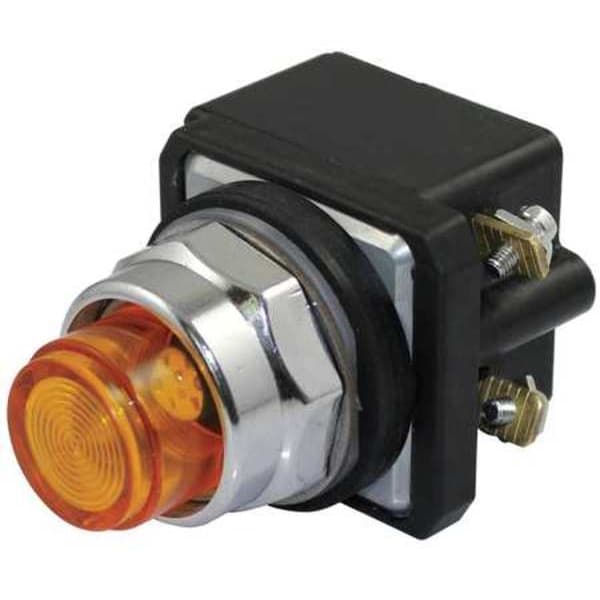

Pilot Light, LED, 24V, 30mm, Chrome, Amber

product price: $118.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color Amber
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Pressure Plate
See all product information

Product Information

Dimensions

Size 30 mm
Panel Cutout Diameter 30 mm
Overall Height 3.46 in
Overall Depth 2.17 in
Manufacturer Warranty Length 1 yr
Overall Width 1.73 in

Details

Item Pilot Light
Voltage 24V AC/DC
Color Amber
Lamp Type LED
Shape Round
Terminal Connection Pressure Plate
Lens Material Plastic
Lens Type Fresnel
Lamp Module Type Full Voltage
Basic Material Metal
NEMA Rating 13, 4
Lamp Voltage 24V AC/DC
Standards CE, cULus
Body Material Zinc Die Cast
Includes Lens and LED Lamp, Light Module
IP Rating IP65
Voltage Rating - Maximum 24 V AC/DC
NEMA Enclosure Rating 13, 4
Lamp Voltage - Maximum 24 V AC/DC
Lens Color Amber
Body Finish Chrome Plated
Lamp Color Amber
Body Color Silver
Includes Lamp Module Lamp Module Included
Includes Push-To-Test No Push-To-Test Included
Series Dayton
Resistance Properties Non-Magnetic
Includes Lens Lens Included

Description

Pilot Light, Voltage 24V AC/DC, Color Amber, Lamp Type LED, Shape Round, Terminal Connection Pressure Plate, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 24V AC/DC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 13, 4, IP Rating IP65, Includes Lens and LED Lamp, Light Module, Standards CE, cULus
